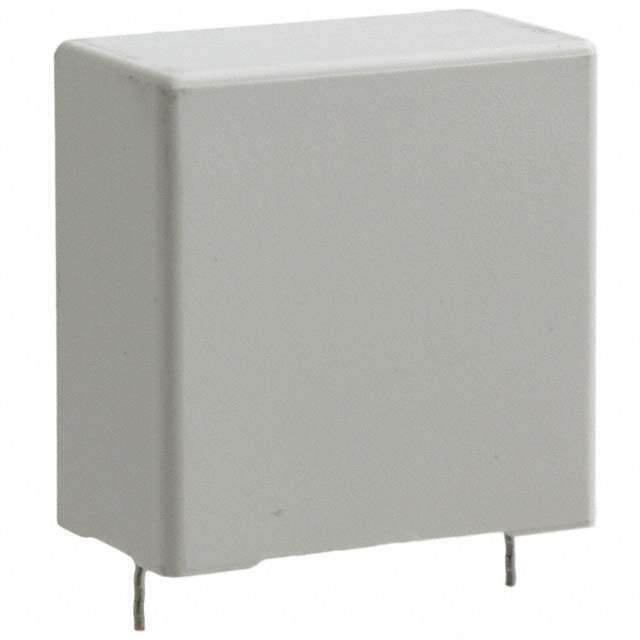

Same model may have multiple batches, images only for reference.

C4ATFBW5100A3FJ

Name: C4ATFBW5100A3FJ
Brand: Kemet
SKU: 810571
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	C4ATFBW5100A3FJ
Manufacturer	Kemet
Catalog	Film Capacitors
Description	CAP FILM 10UF 5% 400VDC RADIAL / Film, Metallized Polypropylene, Power, C4AT, 10 uF, 5%, 400 V, 70C, Lead Spacing = 37.5mm
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Kemet
Packaging	Bulk
Capacitance	10μF
Tolerance	±5%
Voltage Rating - AC	250V
Voltage Rating - DC	400V
Dielectric Material	Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance)	3.3 mOhms
Temperature Range - Operating	-40°C ~ 85°C
Mounting Style	Through Hole
Manufacturer Package	Radial
Dimension	1.634" L x 0.787" W (41.50mm x 20.00mm)
Height - Seated (Maximum)	1.575" (40.00mm)
Termination	PC Pins
Lead Spacing	1.476" (37.50mm)
Applications	DC Link, DC Filtering; High Frequency, Switching
Manufacturer Pack Quantity	58
MSL Level	1 (Unlimited)
Popularity	Medium
Supply and Demand Status	Limited
Win Source Part Number	810574-C4ATFBW5100A3FJ
Ultra Librarian 3D Model	Ultra Librarian C4ATFBW5100A3FJ CAD Model

Description

The Kemet 810574-C4ATFBW5100A3FJ is a bulk packaged capacitor from Kemet with a through-hole mounting style.

Capacitance: 10μF
Tolerance: ±5%
Voltage Rating: 250V AC, 400V DC
Applications: DC Link, DC Filtering, High Frequency, Switching
Termination: PC Pins
Dielectric Material: Polypropylene (PP), Metallized
ESR: 3.3 mOhms
Lead Spacing: 1.476" (37.50mm)
Operating Temperature: -40°C to 85°C
Dimensions: 1.634" L x 0.787" W (41.50mm x 20.00mm)
Package: Radial
Height (Max): 1.575" (40.00mm)
Manufacturer Pack Quantity: 58
