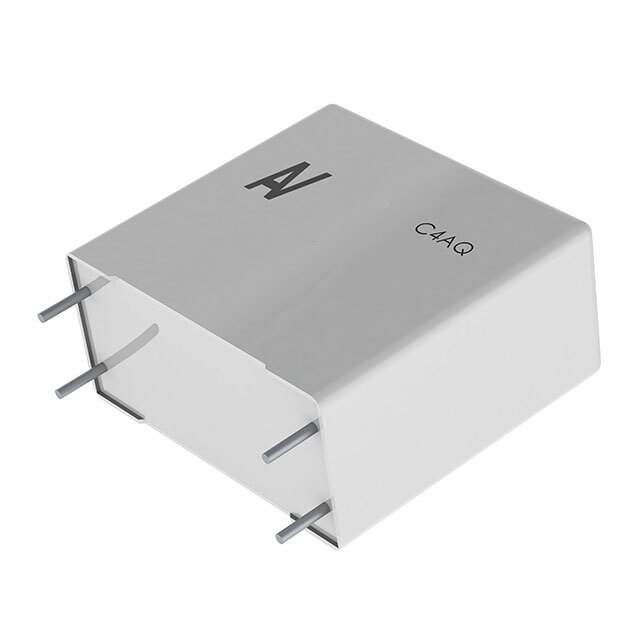

Same model may have multiple batches, images only for reference.

C4AQQBW5120A3FJ

Name: C4AQQBW5120A3FJ
Brand: Kemet
SKU: 969642
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	C4AQQBW5120A3FJ
Manufacturer	Kemet
Catalog	Film Capacitors
Description	CAP FILM 12UF 5% 1.1KVDC RADIAL / 12 µF Film Capacitor 1100V (1.1kV) Polypropylene (PP), Metallized Radial - 4 Leads
Datasheet	C4AQQBW5120A3FJ Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Film Capacitors
Mfr	KEMET
Series	C4AQ
Package	Bulk
Capacitance	12 µF
Tolerance	±5%
Voltage Rating - DC	1100V (1.1kV)
Dielectric Material	Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance)	6.3 mOhms
Temperature Range - Operating	-40°C ~ 105°C
Mounting Type	Through Hole
Package / Case	Radial - 4 Leads
Dimension	1.654" L x 0.787" W (42.00mm x 20.00mm)
Height - Seated (Max)	1.583" (40.20mm)
Termination	PC Pins
Lead Spacing	1.476" (37.50mm)
Applications	Automotive; DC Link, DC Filtering
Ratings	AEC-Q200
Base Product Number	C4AQQB
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.25.0070
Other Names	399-16972,4AQQBW5120A3FJ
Standard Package	58
Win Source Part Number	969642-C4AQQBW5120A3FJ
Ultra Librarian 3D Model	Ultra Librarian C4AQQBW5120A3FJ CAD Model

Alternative Products

Description

The C4AQQBW5120A3FJ is a film capacitor from the C4AQ series, designed for use in automotive applications such as DC link and DC filtering.

Capacitance: 12 µF
Tolerance: ±5%
ESR (equivalent series resistance): 6.3 mOhms
Voltage Rating: 1100V (1.1kV) DC
Temperature Range: -40°C ~ 105°C
Package: radial - 4 leads
Lead Spacing: 1.476" (37.50mm)
Height: 1.583" (40.20mm)
AEC-Q200: Yes
REACH: Unaffected
