Same model may have multiple batches, images only for reference.

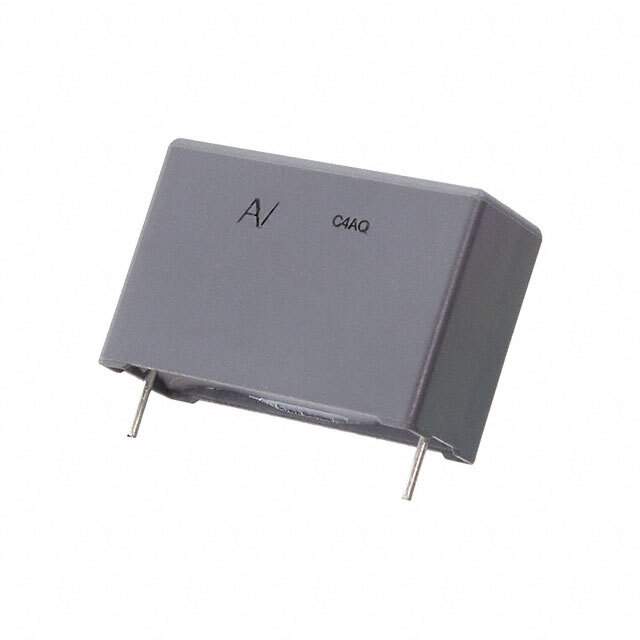

C4AQGBU4560P1WK Real Image
Same model may have multiple batches, images only for reference.

C4AQGBU4560P1WK

Part No C4AQGBU4560P1WK
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 5.6UF 10% 450VDC RADIAL / 5.6 µF Film Capacitor 450V Polypropylene (PP), Metallized Radial
Datasheet
C4AQGBU4560P1WK Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Film Capacitors
Mfr KEMET
Series C4AQ-P
Package Bulk
Capacitance 5.6 µF
Tolerance ±10%
Voltage Rating - DC 450V
Dielectric Material Polypropylene (PP) , Metallized
ESR (Equivalent Series Resistance) 14 mOhms
Temperature Range - Operating -55°C ~ 125°C
Mounting Type Through Hole
Package / Case Radial
Size / Dimension 1.240" L x 0.433" W (31.50mm x 11.00mm)
Height - Seated (Max) 0.795" (20.20mm)
Termination PC Pins
Lead Spacing 1.083" (27.50mm)
Applications Automotive; DC Link, DC Filtering
Ratings AEC-Q200
Features Long Life, Low ESL
Standard Package 256
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0070
Win Source Part Number 1340860-C4AQGBU4560P1WK
Ultra Librarian 3D Model Ultra Librarian C4AQGBU4560P1WK CAD Model

Description

The KEMET C4AQ-P series capacitor is a type of film capacitor designed for use in automotive applications.

  • Product Series: C4AQ-P
  • Application: Automotive
  • Capacitance: 5.6 μF
  • Capacitance Tolerance: ±10%
  • Voltage Rating: 450V DC
  • Dielectric Material: Polypropylene (PP) and Metallized
  • Mounting Type: Radial, Through Hole
  • Lead Spacing: 1.083" (27.50mm)
  • Size/Dimension: 1.240" L x 0.433" W (31.50mm x 11.00mm)
  • Height - Seated (Max): 0.795" (20.20mm)
  • AEC-Q200: Yes
  • Packaging: Bulk Package of 256
