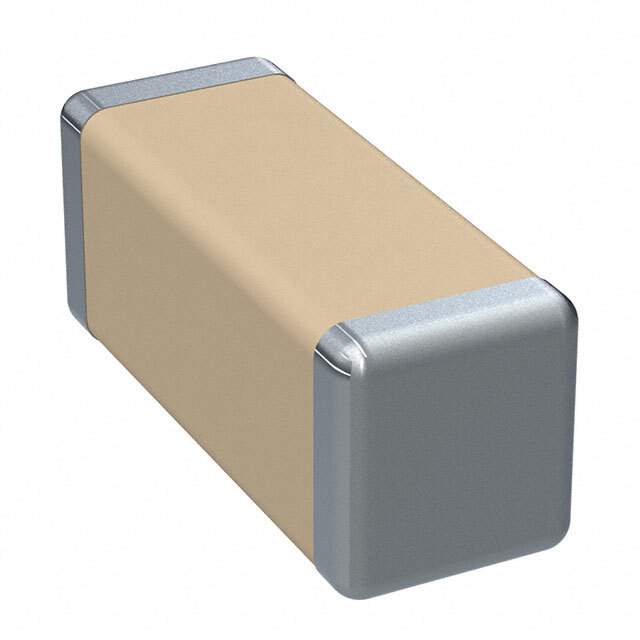

C1808C272KGRAC7800

Part No C1808C272KGRAC7800
Manufacturer Kemet
Catalog Ceramic Capacitors
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr KEMET
Series SMD Comm X7R HV
Package Tape & Reel
Capacitance 2700 pF
Tolerance ±10%
Voltage - Rated 2000V (2kV)
Temperature Coefficient X7R
Temperature Range - Operating -55°C ~ 125°C
Features Low ESL, High Voltage
Applications General Purpose
Mounting Type Surface Mount, MLCC
Package / Case 1808 (4520 Metric)
Dimension 0.185" L x 0.079" W (4.70mm x 2.00mm)
Thickness (Max) 0.085" (2.15mm)
Base Product Number C1808C
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Win Source Part Number 1315841-C1808C272KGRAC7800
Ultra Librarian 3D Model Ultra Librarian C1808C272KGRAC7800 CAD Model

Description

The C1808C272KGRAC7800 is a ceramic capacitor manufactured by KEMET.

  • Type: Low ESL, high voltage
  • Capacitance: 2700 pF
  • Tolerance: ±10%
  • Voltage Rating: 2000V
  • Temperature Coefficient: X7R
  • Mounting Type: Surface mount, MLCC
  • Dimension: 0.185" L x 0.079" W (4.70mm x 2.00mm)
  • Application: General purpose
