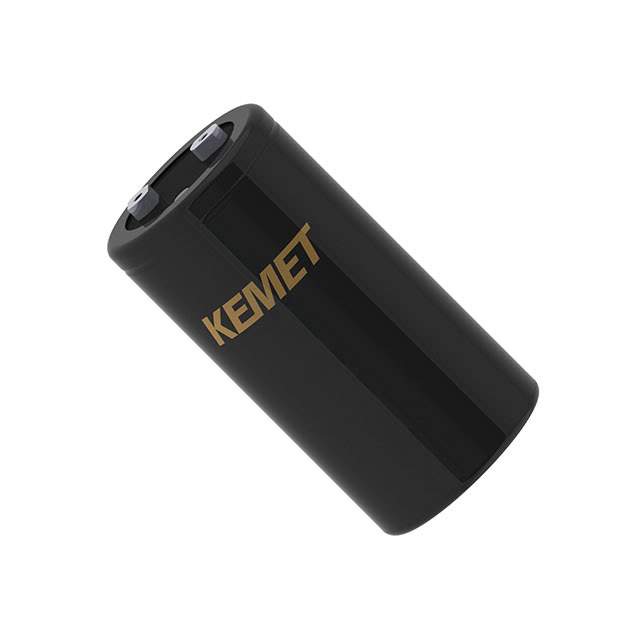

Same model may have multiple batches, images only for reference.

ALS70A332MF500

Name: ALS70A332MF500
Brand: Kemet
SKU: 770936
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	ALS70A332MF500
Manufacturer	Kemet
Catalog	Aluminum Capacitors
Description	CAP ALUM 3300UF 20% 500V SCREW / Cap Aluminum Lytic 3300uF 500V 20% (66 X 105mm) Screw Terminal 0.077 Ohm 12300mA 19000h 85°C T/R
Datasheet	ALS70A332MF500 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Capacitors
Manufacturer	Kemet
Series	ALS70
Packaging	Bulk
Capacitance	3300μF
Tolerance	±20%
Voltage Rating	500V
ESR (Equivalent Series Resistance)	77 mOhm @ 100Hz
Lifetime @ Temp.	19000 Hrs @ 85°C
Operating Temperature Range	-40°C ~ 85°C
Polarization	Polar
Applications	General
Ripple Current - Low Frequency	12.3A @ 100Hz
Ripple Current - High Frequency	19.7A @ 10kHz
Impedance	58 mOhm
Lead Spacing	1.122" (28.50mm)
Dimension	2.598" Dia (66.00mm)
Height - Seated (Maximum)	4.213" (107.00mm)
Mounting	Chassis Mount
Package	Radial, Can - Screw Terminals
Win Source Part Number	770936-ALS70A332MF500
Popularity	Medium
Supply and Demand Status	Limited
Quantity per package	16
Family Name	ALS70
Introduction Date	March 23, 2017
ECCN	EAR99
Country of Origin	China, Portugal
Ultra Librarian 3D Model	Ultra Librarian ALS70A332MF500 CAD Model

Description

This Kemet capacitor is designed for use in electronic circuits and is part of the ALS70 series.

Series: ALS70
Capacitance: 3300μF
Voltage Rating: 500V
Tolerance: +/- 20%
Impedance: 58 mOhm
ESR: 77 mOhm @ 100Hz
Lifetime @ Temperature: 19000 Hrs @ 85 degrees Celsius
Polarization: Polarized
Ripple Current @ 100Hz: 12.3A
Ripple Current @ 10kHz: 19.7A
Package Type: Radial, Can - Screw Terminals
Diameter: 2.598 inches
Height: 4.213 inches
ECCN: Compliant
MSL Level: 1
