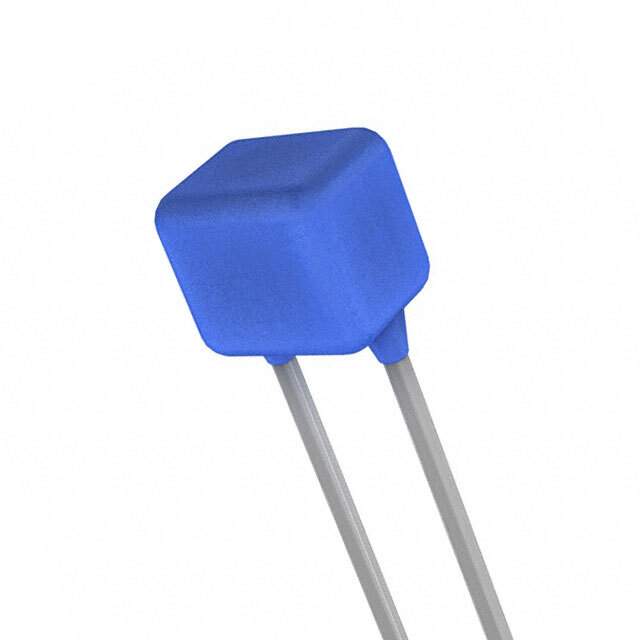

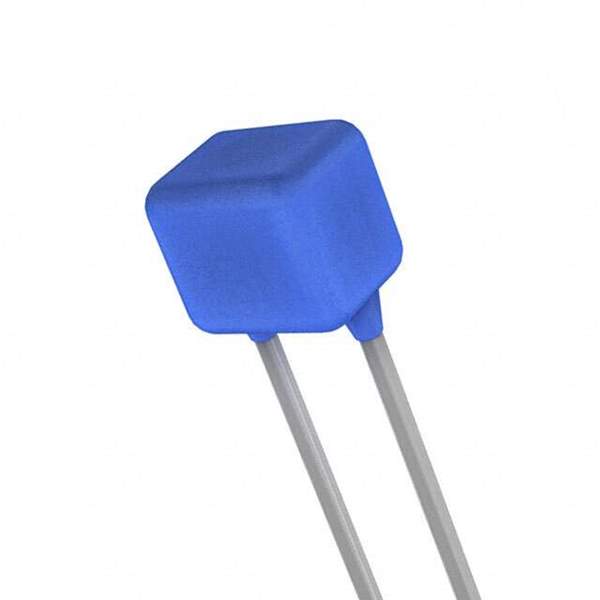

20HV20B102KC Real Image
Same model may have multiple batches, images only for reference.

20HV20B102KC

Part No 20HV20B102KC
Manufacturer Kemet
Catalog Ceramic Capacitors
Description CAP CER 1000PF 2KV X7R RADIAL / 1000 pF ±10% 2000V (2kV) Ceramic Capacitor X7R Radial
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr KEMET
Series HV RAD-LDD Indust X7R HV
Package Bulk
Capacitance 1000 pF
Tolerance ±10%
Voltage - Rated 2000V (2kV)
Temperature Coefficient X7R
Temperature Range - Operating -55°C ~ 200°C
Features High Voltage, High Temperature
Applications Downhole
Mounting Type Through Hole
Package / Case Radial
Size / Dimension 0.250" L x 0.200" W (6.35mm x 5.08mm)
Height - Seated (Max) 0.220" (5.59mm)
Lead Spacing 0.170" (4.32mm)
Lead Style Straight
Base Product Number 20HV20B
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0060
California Prop 65 Warning Information
Win Source Part Number 1350081-20HV20B102KC
Ultra Librarian 3D Model Ultra Librarian 20HV20B102KC CAD Model

Description

The 20HV20B102KC from Kemet is a high voltage, high temperature ceramic capacitor designed for downhole applications.

  • Capacitance: 1000pF
  • Voltage Rating: 2000V
  • Mounting Type: Through Hole
  • Package: Radial
  • Height: 5.59mm
  • Width: 6.35mm
  • Tolerance: ±10%
  • Temperature Coefficient: X7R
  • Operating Temperature: -55°C to 200°C
