Same model may have multiple batches, images only for reference.

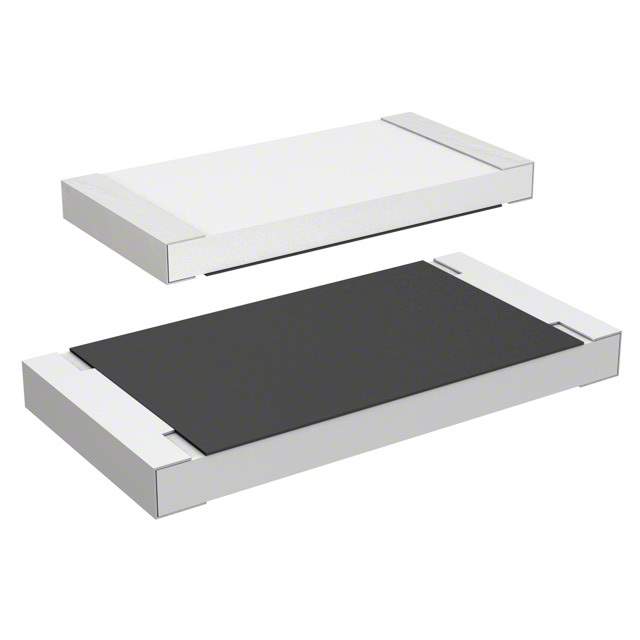

RPC63681JTE Real Image
Same model may have multiple batches, images only for reference.

RPC63681JTE

Part No RPC63681JTE
Manufacturer Kamaya Inc.
Catalog Chip Resistor - Surface Mount
Description RES 680 OHM 1W 5% 2512  /  680 Ohms ±5% 1W Chip Resistor 2512 (6432 Metric) Automotive AEC-Q200, Pulse Withstanding Thick Film
Datasheet
RPC63681JTE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Kamaya Inc.
Series RPC
Package Tape & Reel (TR)
Resistance 680 Ohms
Tolerance ±5%
Power (Watts) 1W
Composition Thick Film
Features Automotive AEC-Q200, Pulse Withstanding
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 2512 (6432 Metric)
Supplier Device Package 2512
Dimension 0.248" L x 0.126" W (6.30mm x 3.20mm)
Height - Seated (Max) 0.028" (0.70mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Other Names 2315-RPC63681JTETR
Standard Package 4,000
Win Source Part Number 1088908-RPC63681JTE
Ultra Librarian 3D Model Ultra Librarian RPC63681JTE CAD Model

Description

The RPC63681JTE is a chip resistor that is part of the RPC series manufactured by Kamaya Inc. It has a resistance of 680 Ohms with a power rating of 1W.

  • Tolerance: ±5%
  • Temperature Coefficient: ±100ppm/°C
  • Height: 0.028" (0.70mm)
  • Packaging: Tape & reel
  • Standard Package: 4,000
  • Package/Case: 2512 (6432 metric)
  • Supplier Device Package: 2512
  • Temperature Range: -55°C to 155°C
