Same model may have multiple batches, images only for reference.

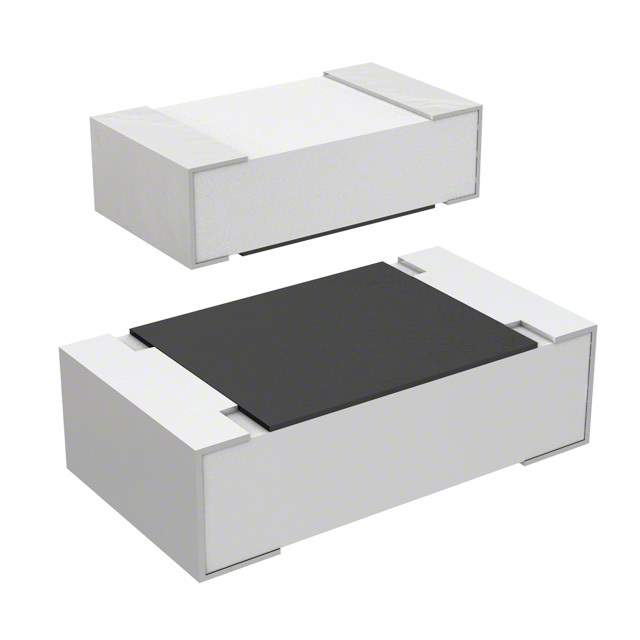

RPC163R3JTP Real Image
Same model may have multiple batches, images only for reference.

RPC163R3JTP

Part No RPC163R3JTP
Manufacturer Kamaya Inc.
Catalog Chip Resistor - Surface Mount
Description RES 3.3 OHM 1/4W 5% 0603 / 3.3 Ohms ±5% 0.25W, 1/4W Chip Resistor 0603 (1608 Metric) Automotive AEC-Q200, Pulse Withstanding Thick Film
Datasheet
RPC163R3JTP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Kamaya Inc.
Series RPC
Package Tape & Reel (TR)
Resistance 3.3 Ohms
Tolerance ±5%
Power (Watts) 0.25W, 1/4W
Composition Thick Film
Features Automotive AEC-Q200, Pulse Withstanding
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603
Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max) 0.022" (0.55mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Other Names 2315-RPC163R3JTPTR
Standard Package 5,000
Win Source Part Number 1134233-RPC163R3JTP
Ultra Librarian 3D Model Ultra Librarian RPC163R3JTP CAD Model

Description

The RPC163R3JTP is a chip resistor-surface mount designed for automotive AEC-Q200 pulse withstanding.

  • Packaging: Tape and reel (TR)
  • Standard Package: 5000
  • Tolerance: ±5 percent
  • Temperature Coefficient: ±200ppm/°C
  • Power: 0.25W, 1/4W
  • Composition: Thick film
  • Terminations: 2
  • Resistance: 3.3 Ohms
  • Package/Case: 0603 (1608 metric)
  • Supplier Device Package: 0603
  • Temperature Range: -55°C to 155°C
  • Dimension: 0.063" L x 0.031" W (1.60mm x 0.80mm)
  • ECCN: EAR99
  • HTSUS: 8533.21.0030
  • Other Names: 2315-RPC163R3JTPTR
