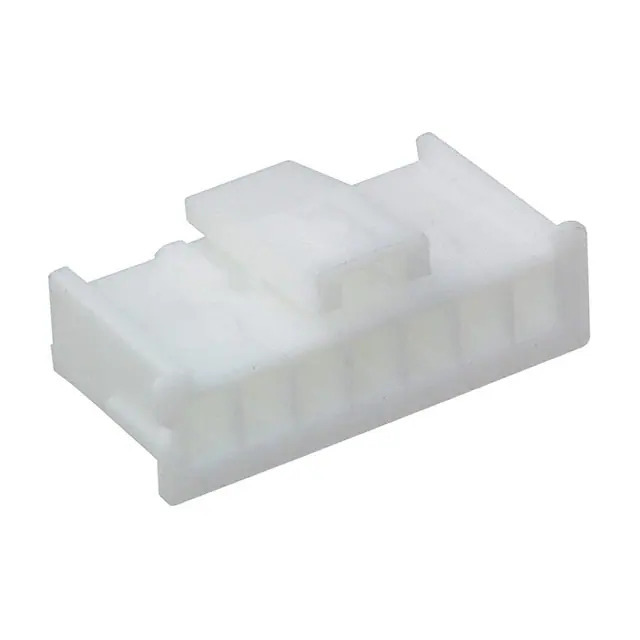

Same model may have multiple batches, images only for reference.

XARP-07V

Name: XARP-07V
Brand: JST Sales America Inc.
SKU: 1365262
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	XARP-07V
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT HSG 7POS 2.50MM / 7 Rectangular Connectors - Housings Receptacle Natural 0.098" (2.50mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr	JST Sales America Inc.
Series	XA
Package	Bulk
Product Status	Active
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	7
Pitch	0.098" (2.50mm)
Number of Rows	1
Row Spacing	-
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Fastening Type	Latch Lock
Color	Natural
Features	-
Temperature Range - Operating	-25°C ~ 85°C
Note	Contacts Not Included
Base Product Number	XARP
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8538.90.6000
Win Source Part Number	1365262-XARP-07V
Ultra Librarian 3D Model	Ultra Librarian XARP-07V CAD Model

Alternative Products

Description

The 1365262-XARP-07V is a rectangular connector housing from JST Sales America Inc.

Connector Type: Receptacle
Termination: Crimp
Number of Positions: 7
Number of Rows: 1
Pitch: 0.098" (2.50mm)
Mounting Type: Free Hanging (In-Line)
Fastening Type: Latch Lock
Material: Natural
Operating Temperature: -25°C ~ 85°C
Series: XA
Product Status: Active
