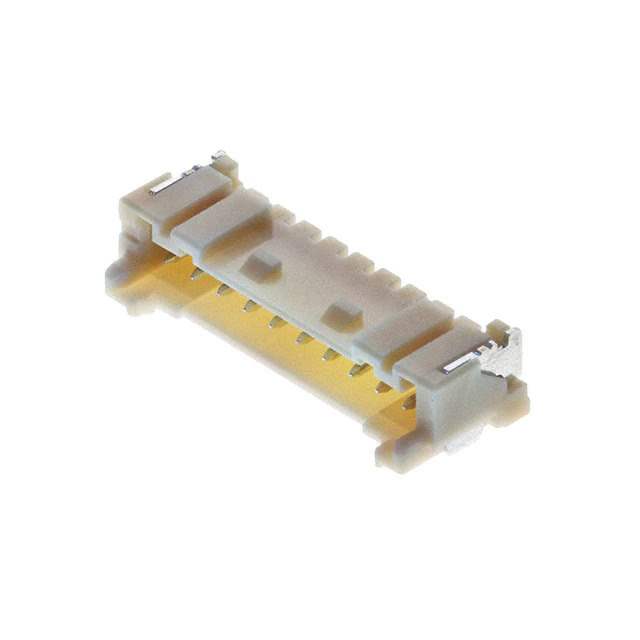

SM10B-PASS-TBT(LF)(SN)

Name: SM10B-PASS-TBT(LF)(SN)
Brand: JST Sales America Inc.
SKU: 849563
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SM10B-PASS-TBT(LF)(SN)
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER SMD R/A 10POS 2MM / Connector Header Surface Mount, Right Angle 10 position 0.079" (2.00mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	JST Sales America Inc.
Series	PA
Package	Tape & Reel
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	10
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Surface Mount, Right Angle
Termination	Solder
Fastening Type	Locking Ramp
Insulation Height	0.224" (5.69mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Polyamide (PA), Nylon
Features	Pick and Place, Solder Retention
Temperature Range - Operating	-25°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	3A
Voltage Rating	250V
Base Product Number	SM10B-PA
Standard Package	1,000 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	849563-SM10B-PASS-TBT(LF)(SN)
Ultra Librarian 3D Model	Ultra Librarian SM10B-PASS-TBT(LF)(SN) CAD Model

Alternative Products

Description

The 849563-SM10B-PASS-TBT(LF)(SN) is a male pin header connector from the PA series of rectangular connectors by Hirose Electric Co Ltd.

Positions: 10
Rows: Single
Contact Material: Copper alloy
Voltage Rating: 250V
Current Rating: 3A
Pitch: 0.079 inches (2.00mm)
Termination: Solder
Features: Locking ramp
Packaging: Tape and reel
