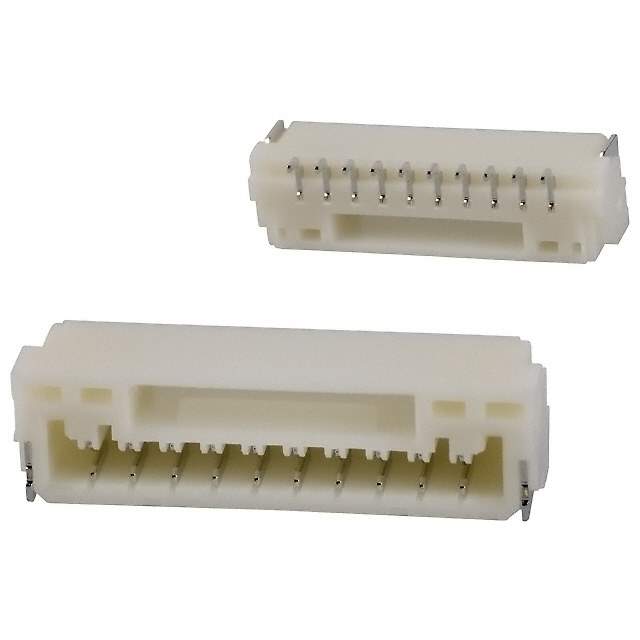

SM10B-GHS-TB(LF)(SN)

Part No SM10B-GHS-TB(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER GH SIDE 10POS 1.25MM / Conn Shrouded Header HDR 10 POS 1.25mm Solder RA Side Entry SMD T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Packaging Reel - TR
Status Active
Connector Type Header
Contact Type Outer Shroud Contact
Pitch - Mating 0.049" (1.25mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 10
Number of Positions Loaded All
Number of Rows 1
Mounting Surface Mount, Right Angle
Termination Solder
Fastening Type Locking Ramp
Insulation Height 0.167" (4.25mm)
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Insulation Material Polyamide (PA9T), Nylon 9T
Features Solder Retention
Temperature Range - Operating -25°C to 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating 1A
Voltage Rating 50V
Mated Stacking Heights 4.35mm
Win Source Part Number 042655-SM10B-GHS-TB(LF)(SN)
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Introduction Date October 18, 2005
ECCN EAR99
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian SM10B-GHS-TB(LF)(SN) CAD Model

Description

The 042655-SM10B-GHS-TB(LF)(SN) is a 10-position header connector from JST Sales America Inc.

  • Applications: board-to-cable or wire
  • Contact: outer shroud contact
  • Fastening Type: locking ramp
  • Termination: solder
  • Voltage Rating: 50V
  • Current Rating: 1A
  • Insulation Material: polyamide (PA9T) and nylon 9T
  • Material Flammability Rating: UL94 V-0
  • Mated Stacking Height: 4.35mm
  • Pitch-Mating: 0.049" (1.25mm)
  • Mounting: surface mount, right angle
  • Supply and Demand Status: balanced
  • Estimated EOL Date: 2027
