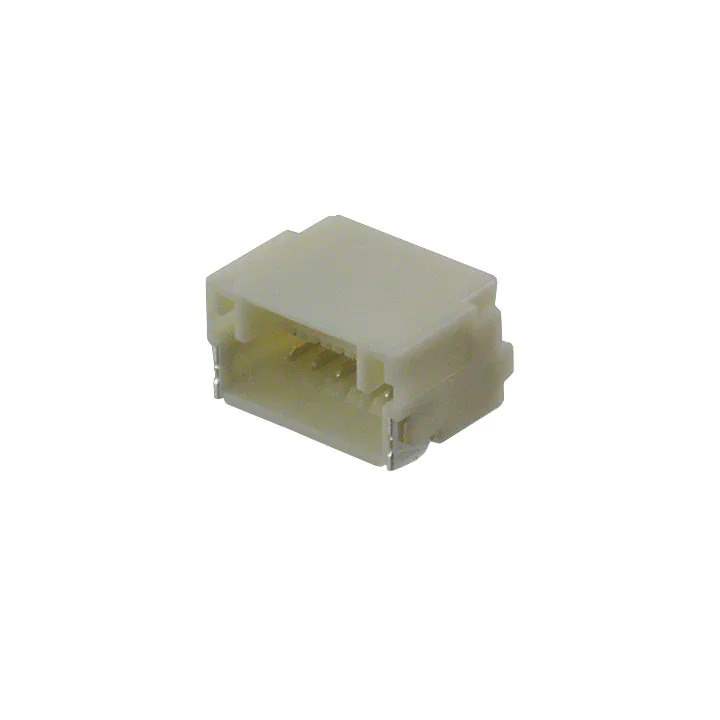

The 849740-SM06B-NSHSS-TB (LF)(SN) is a header connector from the NSH series by JST Sales America Inc. It is a male pin connector with 6 positions and 1 row.

• Series: NSH
• Connector Type: Header
• Gender: Male Pin
• Number of Positions: 6
• Number of Rows: 1
• Fastening Type: Latch Holder
• Termination Method: Solder
• Contact Material: Copper Alloy
• Voltage Rating: 50V
• Current Rating: 1A
• Insulation Material: Polyamide (PA), Nylon
• Flammability Rating: UL94 V-0
• Application: Board to Cable/Wire
• Mating Pitch: 0.039" (1.00mm)
• Contact Finish (Mating/Post): Tin/Tin
• Insulation Height: 0.173" (4.40mm)
• Operating Temperature: -25°C to 85°C
