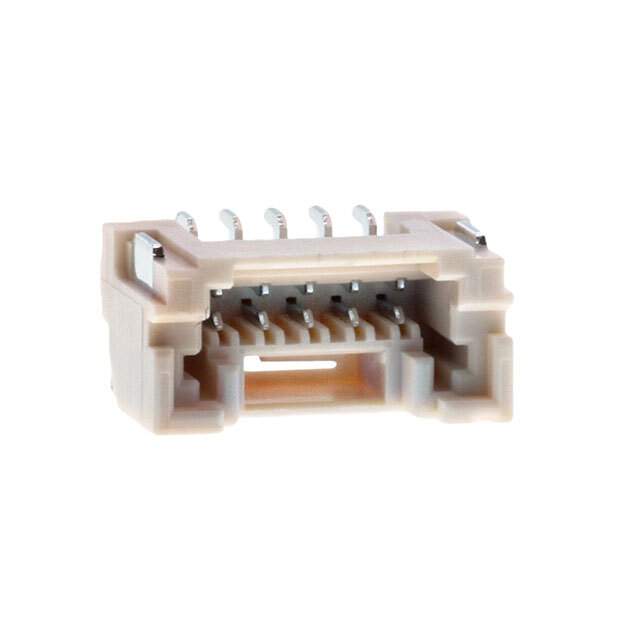

SM05B-ZESS-TB(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

SM05B-ZESS-TB(LF)(SN)

Part No SM05B-ZESS-TB(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 5POS 1.5MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 33 Weeks
Features Connector Header Surface Mount, Right Angle 5 position 0.059" (1.50mm)
Manufacturer JST Sales America Inc.
Series ZE
Package Reel - TR
Operating Temperature Range -25°C ~ 85°C
Mounting Surface Mount, Right Angle
Family Name SM05B-ZE
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number SM05B-ZESS-TB (LF)(SN), 455-2398-1, 455-2398-2, 455-2398-6, SM05BZESSTBLFSN
Quantity per package 1000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 934045-SM05B-ZESS-TB(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian SM05B-ZESS-TB(LF)(SN) CAD Model

Description

The JST Sales America Inc. 934045-SM05B-ZESS-TB(LF)(SN) is a 5 position, 0.059" (1.50mm) surface mount, right-angle connector header.

  • Series: ZE
  • Operating Temperature: -25°C to 85°C
  • Packaging: Reel - TR
  • Quantity per Package: 1000
  • ECCN: EAR99
  • HTSUS: 8536.69.4040
  • Estimated Production Lead Time: 33 weeks
