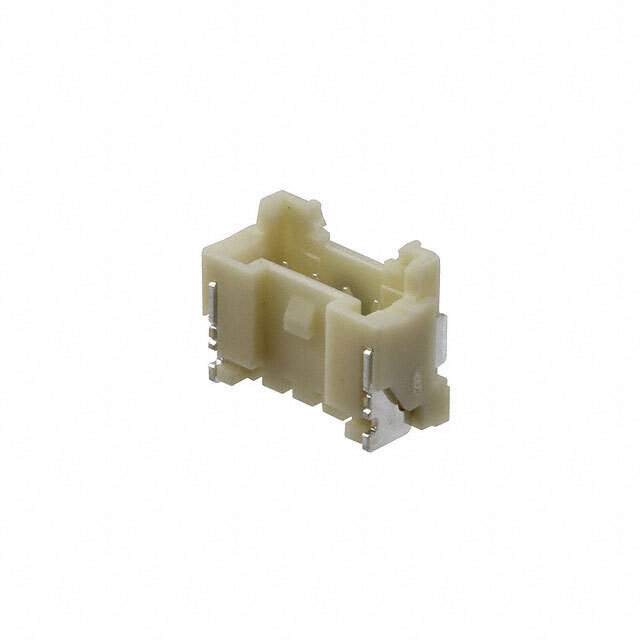

SM04B-PASS-TBT(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

SM04B-PASS-TBT(LF)(SN)

Part No SM04B-PASS-TBT(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description Conn Shrouded Header (4 Sides) HDR 4 POS 2mm Solder RA SMD T/R / CONN HEADER PA 4POS SIDE SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Packaging Reel - TR
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 4
Number of Positions Loaded All
Number of Rows 1
Mounting Surface Mount, Right Angle
Termination Solder
Fastening Type Locking Ramp
Insulation Height 0.224" (5.69mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Insulation Material Polyamide (PA), Nylon
Features Pick and Place, Solder Retention
Temperature Range - Operating -25°C to 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating 3A
Voltage Rating 250V
Mated Stacking Heights 6.2mm, 7.6mm
Win Source Part Number 125813-SM04B-PASS-TBT(LF)(SN)
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name PA
Introduction Date December 04, 2012
ECCN EAR99
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian SM04B-PASS-TBT(LF)(SN) CAD Model

Description

The SM04B-PASS-TBT(LF)(SN) is a high popularity electronic component manufactured by JST Sales America Inc. that has a limited supply and demand status.

  • Number of Positions: 4
  • Features: Pick and place and solder retention
  • Connector Type: Header
  • Contact Type: Male pin
  • Voltage Rating: 250V
  • Current Rating: 3A
  • Mounting: Surface mount and right angle
  • Pitch-Mating: 0.079" (2.00mm)
  • Contact Finish-Mating: Tin
  • Contact Finish-Post: Tin
  • Shrouded: 4 wall
  • Insulation Height: 0.224" (5.69mm)
  • Temperature Range: -25°C to 85°C
