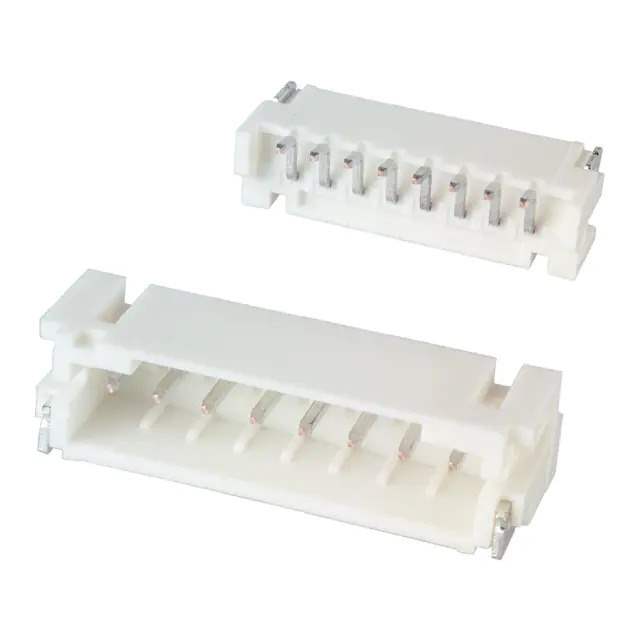

S8B-PH-SM4-TB(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

S8B-PH-SM4-TB(LF)(SN)

Part No S8B-PH-SM4-TB(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 8POS 2MM / Connector Header Surface Mount, Right Angle 8 position 0.079" (2.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series PH
Package Tape & Reel
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 8
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount, Right Angle
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.130" (3.30mm)
Insulation Height 0.217" (5.51mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA6T), Nylon 6T
Features Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 2A
Voltage Rating 100V
Base Product Number S8B-PH-S
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 893274-S8B-PH-SM4-TB(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian S8B-PH-SM4-TB(LF)(SN) CAD Model

Description

The PH series header connector, part number 893274-S8B-PH-SM4-TB(LF)(SN), is a male pin connector with 8 positions.

  • Fastening Type: Solder Retention and Detent Lock
  • Mounting: Surface Mount, Right Angle
  • Pitch: 0.079" (2.00mm)
  • Insulation Color: Natural
  • Contact Material: Copper Alloy
  • Contact Finish: Tin
  • Operating Temperature: -25°C to 85°C
  • Application: Board to Cable/Wire
  • Current Rating: 2A
  • Manufacturer: JST Sales America Inc.
  • Status: Active
