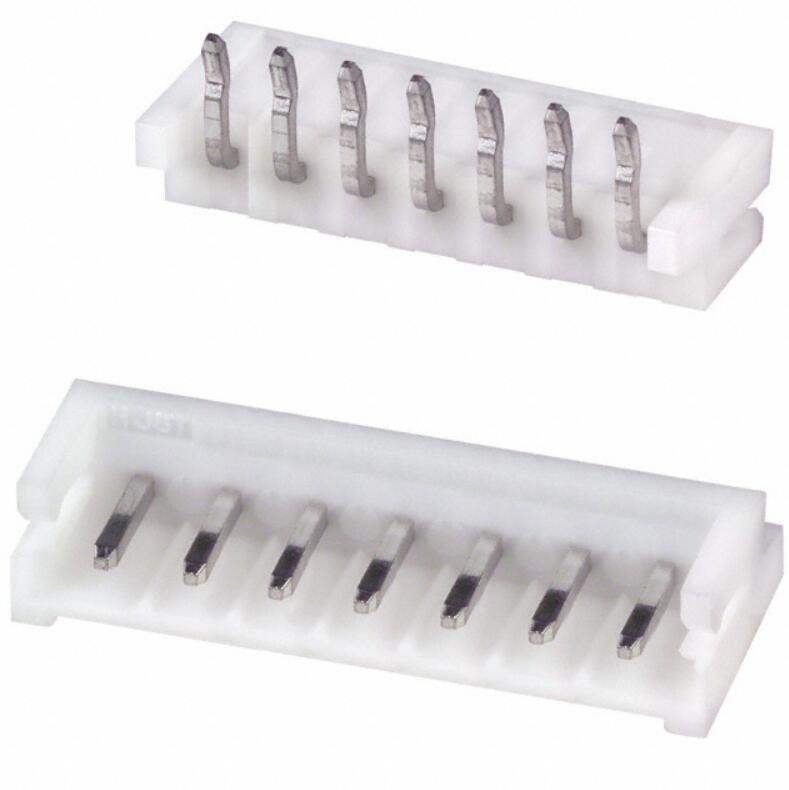

S7B-EH JST Sales America Inc.
Same model may have multiple batches, images only for reference.

S7B-EH

Part No S7B-EH
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER R/A 7POS 2.5MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1201915-S7B-EH
Win Source Part Number Cross
Manufacturer JST Sales America Inc.
Category Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Series EH
Package Bulk
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Style Board to Cable/Wire
Ultra Librarian 3D Model Ultra Librarian S7B-EH CAD Model

Description

The EH series header by JST Sales America Inc. is a versatile rectangular connector designed for board to cable/wire applications.

  • Series: EH
  • Pitch: 0.098" (2.50mm)
  • Packaging: Bulk
  • Status: Active
