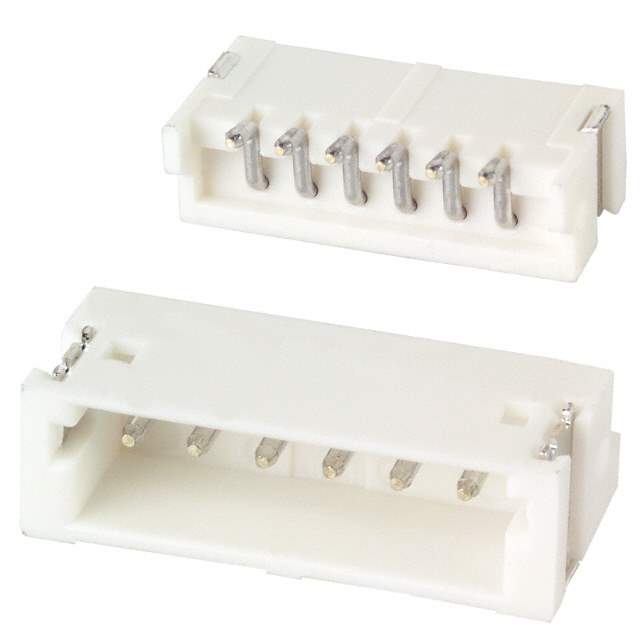

S6B-ZR-SM3A-TF Real Image
Same model may have multiple batches, images only for reference.

S6B-ZR-SM3A-TF

Part No S6B-ZR-SM3A-TF
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER ZH SIDE 6POS 1.5MM / Conn Shrouded Header HDR 6 POS 1.5mm Solder RA SMD T/R
Datasheet
S6B-ZR-SM3A-TF Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Series ZH
Packaging Reel package
Part Status Obsolete(EOL)
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.059" (1.50mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 6
Number of Positions Loaded All
Number of Rows 1
Mounting Surface Mount, Right Angle
Termination Solder
Fastening Type Detent Lock
Insulation Height 0.146" (3.71mm)
Contact Shape Circular
Contact Finish - Mating Tin-Lead
Contact Finish - Post Tin-Lead
Contact Material Brass
Insulation Material Polyamide (PA46), Nylon 4/6, Glass Filled
Features Solder Retention
Operating Temperature Range -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating 1A
Voltage Rating 50V
Win Source Part Number 793685-S6B-ZR-SM3A-TF
Popularity Medium
Supply and Demand Status Limited
Family Name ZH
Introduction Date July 11, 2001
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian S6B-ZR-SM3A-TF CAD Model

Description

The JST Sales America Inc. ZH series S6B-ZR-SM3A-TF is an obsolete (EOL) connector with a 6-position header and a male pin contact type.

  • Features: Solder retention
  • Voltage Rating: 50V
  • Current Rating: 1A
  • Application: Board-to-cable/wire
  • Pitch-Mating: 0.059 inches
  • Mounting: Surface-mount, right-angle
  • Fastening Type: Detent lock
  • Insulation Material: Polyamide (PA46), nylon 4/6, glass-filled
  • Insulation Color: Natural
