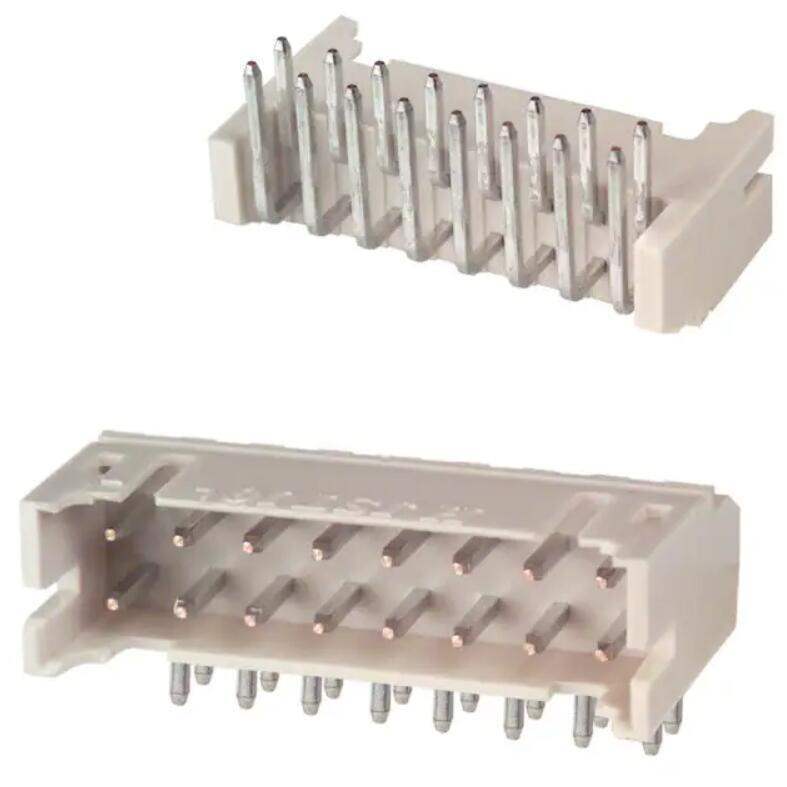

S16B-PHDSS JST Sales America Inc.
Same model may have multiple batches, images only for reference.

S16B-PHDSS

Part No S16B-PHDSS
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER R/A 16POS 2MM
Datasheet
S16B-PHDSS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1196663-S16B-PHDSS
Win Source Part Number Cross
Manufacturer JST Sales America Inc.
Category Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Series PHD
Package Bulk
Product Status Obsolete
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 16
Ultra Librarian 3D Model Ultra Librarian S16B-PHDSS CAD Model

Description

The JST Sales America Inc. 1196663 is a male pin header connector with a series name of PHD.

  • Series: PHD
  • Number of Positions: 16
  • Connector Type: Header
  • Contact Type: Male Pin
  • Pitch - Mating: 0.079" (2.00mm)
  • Lifecycle Status: Obsolete
