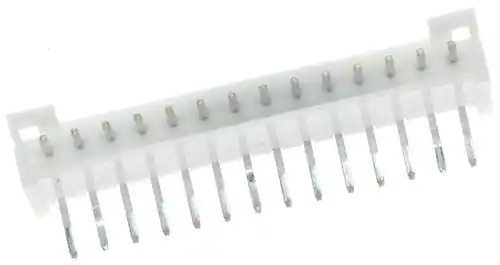

S14B-PH-K-S(LF)(SN)

Name: S14B-PH-K-S(LF)(SN)
Brand: JST Sales America Inc.
SKU: 1362580
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	S14B-PH-K-S(LF)(SN)
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 14POS 2MM / Connector Header Through Hole, Right Angle 14 position 0.079" (2.00mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	JST Sales America Inc.
Series	PH
Package	Bulk
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	14
Number of Rows	1
Row Spacing - Mating	-
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole, Right Angle
Termination	Press-Fit, Solder
Fastening Type	Detent Lock
Contact Length - Mating	0.130" (3.30mm)
Contact Length - Post	0.134" (3.40mm)
Overall Contact Length	-
Insulation Height	0.189" (4.80mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	-
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA66), Nylon 6/6
Features	-
Temperature Range - Operating	-25°C ~ 85°C
Ingress Protection	-
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	2A
Voltage Rating	100V
Mated Stacking Heights	-
Contact Finish Thickness - Post	-
Applications	-
Base Product Number	S14B-PH
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1362580-S14B-PH-K-S(LF)(SN)
Ultra Librarian 3D Model	Ultra Librarian S14B-PH-K-S(LF)(SN) CAD Model

Alternative Products

Description

The 1362580-S14B-PH-K-S(LF)(SN) is a male pin header connector from JST Sales America Inc.

Series: PH
Connection Type: Board to Cable/Wire
Pitch: 0.079" (2.00mm)
Positions: 14 (Single Row)
Current Rating: 2A
Voltage Rating: 100V
Shrouding: Shrouded, 4 Walls
Fastening Type: Detent Lock
Contact Finish: Tin
Contact Material: Brass
Insulation Material: Polyamide (PA66), Nylon 6/6, UL94 V-0
Temperature Range: -25°C to 85°C
Packaging: Bulk
Status: Active
