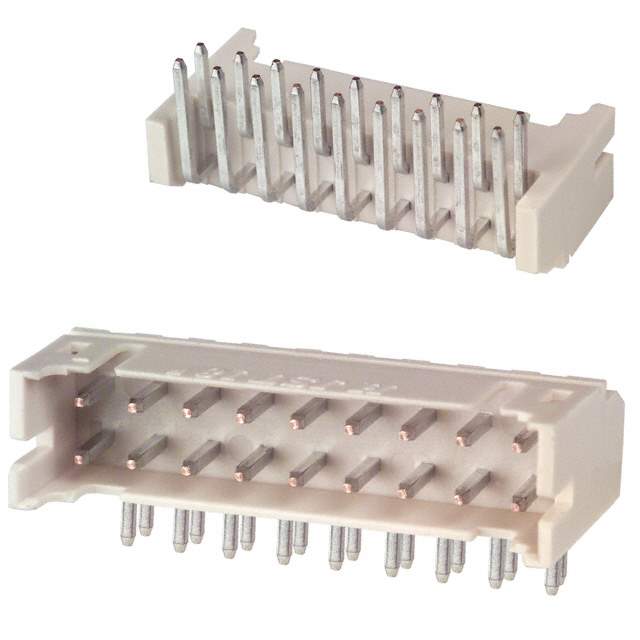

S18B-PHDSS(LF)(SN)

Name: S18B-PHDSS(LF)(SN)
Brand: JST Sales America Inc.
SKU: 1338431
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	S18B-PHDSS(LF)(SN)
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 18POS 2MM / Connector Header Through Hole, Right Angle 18 position 0.079" (2.00mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	JST Sales America Inc.
Series	PHD
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	18
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Detent Lock
Contact Length - Mating	0.114" (2.90mm)
Contact Length - Post	0.118" (3.00mm)
Insulation Height	0.197" (5.00mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Polyamide (PA) , Nylon, Glass Filled
Temperature Range - Operating	-25°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	3A
Voltage Rating	250V
Base Product Number	S18B-PHD
Standard Package	250
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1338431-S18B-PHDSS(LF)(SN)
Ultra Librarian 3D Model	Ultra Librarian S18B-PHDSS(LF)(SN) CAD Model

Alternative Products

Description

The PHD series connector is a 18 position header with male pins, in a shrouded 4 wall configuration.

Positions: 18
Configuration: Shrouded 4 Wall
Pitch: 0.079" (2.00mm)
Mated Stacking Height: 11.3mm
Contact Material: Copper Alloy
Contact Finish: Tin
Insulation Material: Polyamide (PA) and Nylon, Glass-Filled
Insulation Color: Natural
Flammability Rating: UL94 V-0
Style: Board to Cable/Wire
Current Rating: 3A
Voltage Rating: 250V
Packaging: Bulk
Contact Length: 0.118" (3.00mm)
Insulation Height: 0.197" (5.00mm)
Operating Temperature Range: -25°C ~ 85°C
