Same model may have multiple batches, images only for reference.

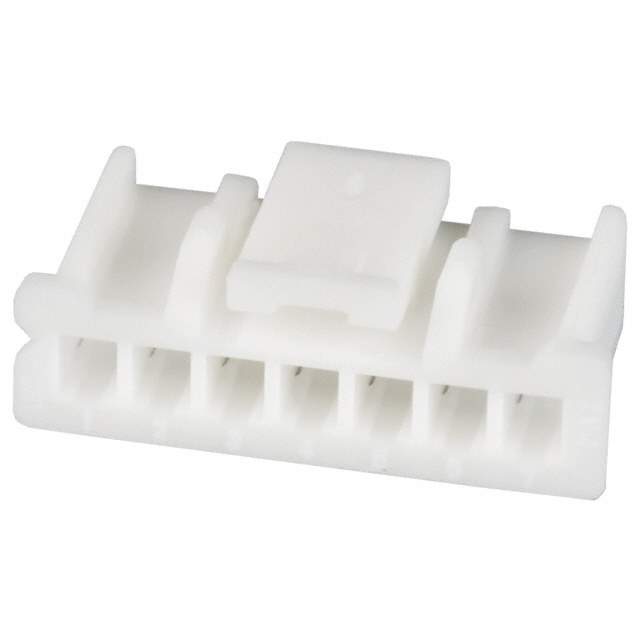

PAP-07V-S Real Image
Same model may have multiple batches, images only for reference.

PAP-07V-S

Part No PAP-07V-S
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN RCPT HSG 7POS 2.00MM / 7 Rectangular Connectors - Housings Receptacle Natural 0.079" (2.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Rectangular Connector Housings
Manufacturer JST Sales America Inc.
Packaging Bulk
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 7
Pitch 0.079" (2.00mm)
Number of Rows 1
Mounting Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Latch Lock
Color Natural
Note Contacts Not Included
Base Product Number PAP-07V
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.6000
Other Part Number PAP07VS,455-1491
Standard Package 1,000
Win Source Part Number 1332939-PAP-07V-S
Ultra Librarian 3D Model Ultra Librarian PAP-07V-S CAD Model

Description

The PAP-07V-S is a rectangular connector housing with a receptacle type connector.

  • Positions: 7
  • Pitch: 0.079 inches
  • Color: Natural
  • Contact Type: Female Socket
  • Fastening Type: Latch Lock
  • Mounting Style: Free-Hanging (In-Line)
  • Contact Termination: Crimp
  • Contacts Included: No
  • Packaging: Bulk
  • Standard Package: 1000
