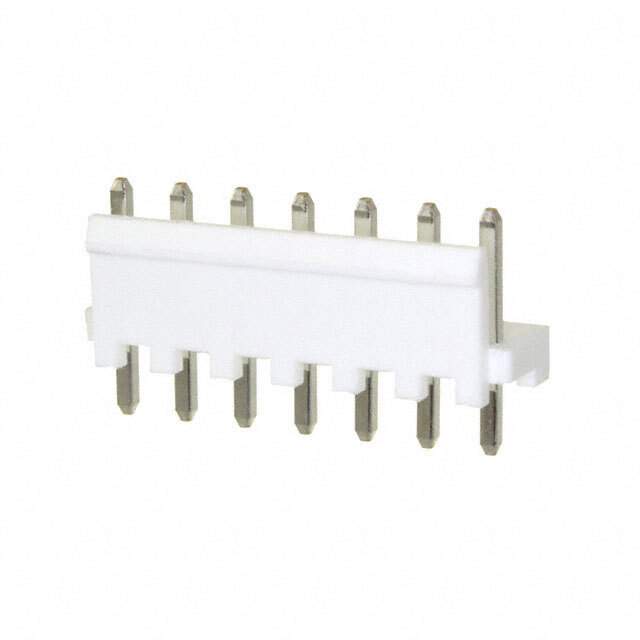

Same model may have multiple batches, images only for reference.

B7P-VH-B(LF)(SN)

Name: B7P-VH-B(LF)(SN)
Brand: JST Sales America Inc.
SKU: 1293254
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	B7P-VH-B(LF)(SN)
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	JST Sales America Inc.
Series	VH
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.156" (3.96mm)
Number of Positions	7
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 1 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Locking Ramp
Contact Length - Mating	0.303" (7.70mm)
Contact Length - Post	0.146" (3.70mm)
Overall Contact Length	0.575" (14.60mm)
Insulation Height	0.370" (9.40mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Temperature Range - Operating	-25°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	10A
Voltage Rating	250V
Base Product Number	B7P-VH
Standard Package	250
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293254-B7P-VH-B(LF)(SN)
Ultra Librarian 3D Model	Ultra Librarian B7P-VH-B(LF)(SN) CAD Model

Alternative Products

Description

The JST Sales America Inc. 1293254-B7P-VH-B(LF)(SN) is a 7-position male pin header connector that is perfect for use in electronic devices.

Series: VH
Number of Positions: 7
Connector Type: Male Pin Header
Fastening Type: Locking Ramp
Voltage Rating: 250V
Material Flammability Rating: UL94 V-0
Contact Material: Brass
Contact Finish: Tin
Contact Shape: Square
Style: Board to Cable/Wire
Pitch: 0.156" (3.96mm)
Package: Bulk
Standard Package: 250
Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
