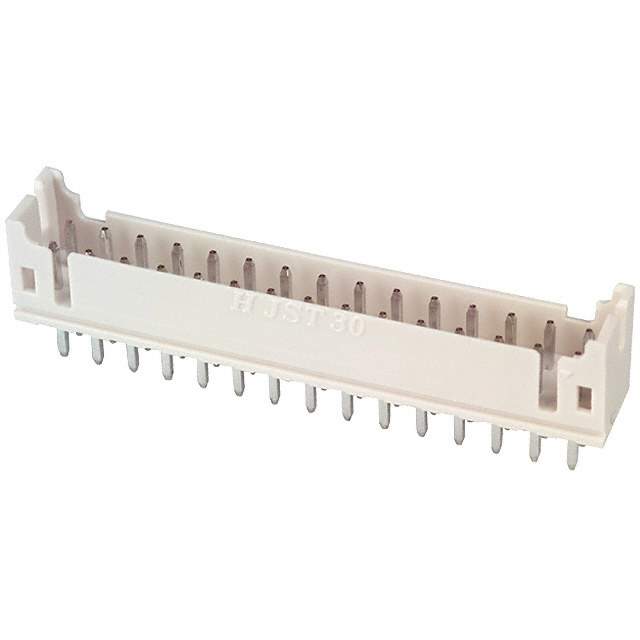

B30B-PHDSS(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

B30B-PHDSS(LF)(SN)

Part No B30B-PHDSS(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series PHD
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 30
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.114" (2.90mm)
Contact Length - Post 0.118" (3.00mm)
Overall Contact Length 0.291" (7.40mm)
Insulation Height 0.256" (6.50mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA), Nylon, Glass Filled
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Voltage Rating 250V
Mated Stacking Heights 8.8mm
Base Product Number B30B-PHD
Other Names 455-1772,(D)B30B-PHDSS(LF)(SN),B30BPHDSSLFSN
Standard Package 250
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293279-B30B-PHDSS(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian B30B-PHDSS(LF)(SN) CAD Model

Description

The JST Sales America Inc. PHD series header connector is a high-quality electronic component designed for board-to-cable/wire applications.

  • Series: PHD
  • Positions: 30
  • Contact Type: Male Pin Contacts
  • Style: Board-to-Cable/Wire
  • Fastening Type: Detent Lock
  • Contact Material: Copper Alloy
  • Voltage Rating: 250V
  • Current Rating: 3A
  • Mounting Type: Through Hole
  • Insulation Material: Polyamide (PA), nylon, glass-filled
  • Material Flammability: UL94 V-0
  • Operating Temperature: -25°C to 85°C
  • Package: Bulk
