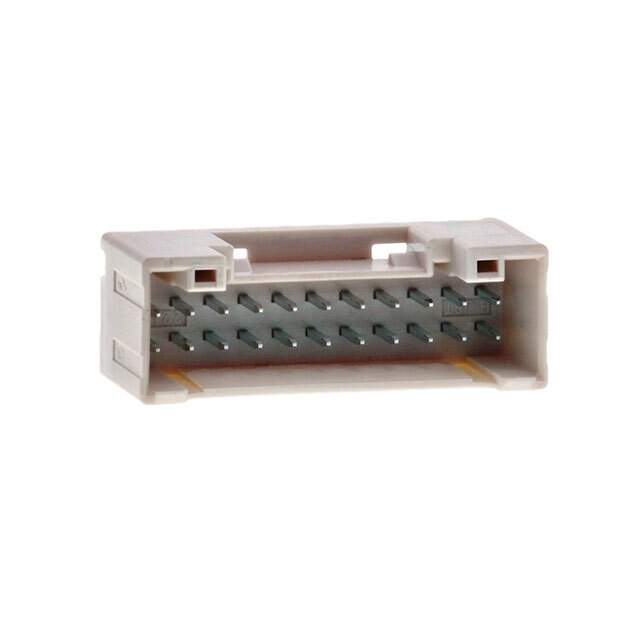

B22B-PUDSS-1(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

B22B-PUDSS-1(LF)(SN)

Part No B22B-PUDSS-1(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 22POS 2MM / Connector Header Through Hole 22 position 0.079" (2.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series PUD
Package Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 22
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Latch Holder
Contact Length - Post 0.122" (3.10mm)
Insulation Height 0.378" (9.60mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA66) , Nylon 6/6, Glass Filled
Features Board Guide
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Voltage Rating 250V
Mated Stacking Heights 11mm
Base Product Number B22B-PUD
Standard Package 1,320
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1349794-B22B-PUDSS-1(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian B22B-PUDSS-1(LF)(SN) CAD Model

Description

The PUD series male pin header connector with 22 positions is an ideal choice for board-to-cable/wire applications.

  • Number of Positions: 22
  • Mating: Board to Cable/Wire
  • Style: Board to Cable/Wire
  • Shrouding: Shrouded - 4 Wall
  • Pitch - Mating: 0.079" (2.00mm)
  • Contact Material: Copper Alloy
  • Voltage Rating: 250V
  • Current Rating (Amps): 3A
  • Mated Stacking Heights: 11mm
  • Termination: Solder
  • Material Flammability Rating: UL94 V-0
  • Operating Temperature: -25°C to 85°C
  • Packaging: Tray
  • Package Quantity: 1,320
