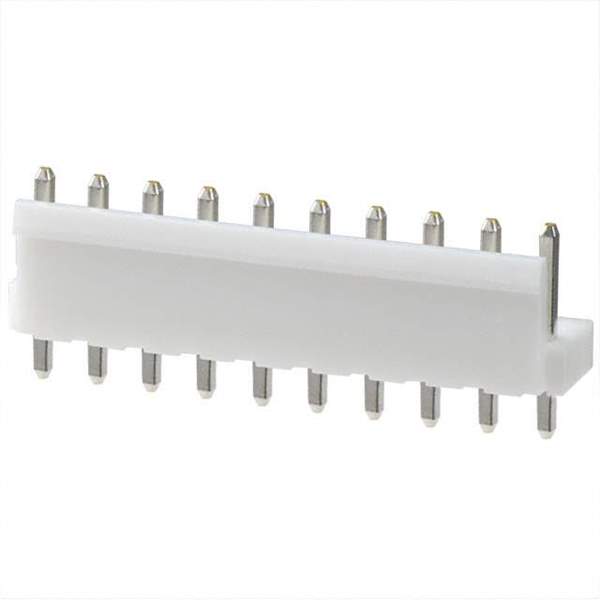

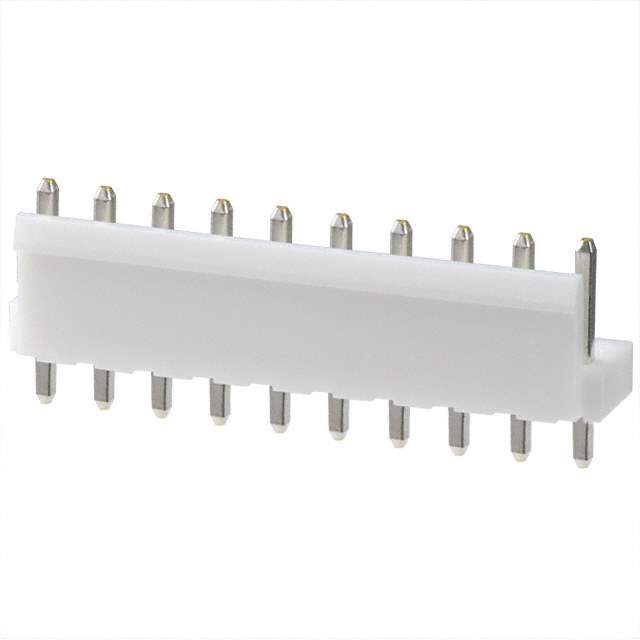

B10P-VH(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

B10P-VH(LF)(SN)

Part No B10P-VH(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series VH
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.156" (3.96mm)
Number of Positions 10
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 1 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Length - Mating 0.303" (7.70mm)
Contact Length - Post 0.146" (3.70mm)
Overall Contact Length 0.575" (14.60mm)
Insulation Height 0.370" (9.40mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 10A
Voltage Rating 250V
Mated Stacking Heights 16.5mm
Base Product Number B10P-VH
Other Names (W)B10P-VH(LF)(SN),455-1647,B10PVHLFSN,B10P-VH(LF)(SN),Q2215284
Standard Package 200
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293263-B10P-VH(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian B10P-VH(LF)(SN) CAD Model

Description

The VH series 10-position male pin header connector is a reliable and durable choice for your electronic projects.

  • Series: VH
  • Current Rating: 10A
  • Style: Board-to-Cable/Wire
  • Number of Positions: 10
  • Fastening Type: Locking Ramp
  • Contact Material: Brass
  • Insulation Material: Polyamide (PA66), nylon 6/6
  • Shrouding: Shrouded with One Wall
  • Pitch: 0.156 inches
  • Temperature Range: -25°C to 85°C
  • Package: Bulk
  • Standard Package: 200
