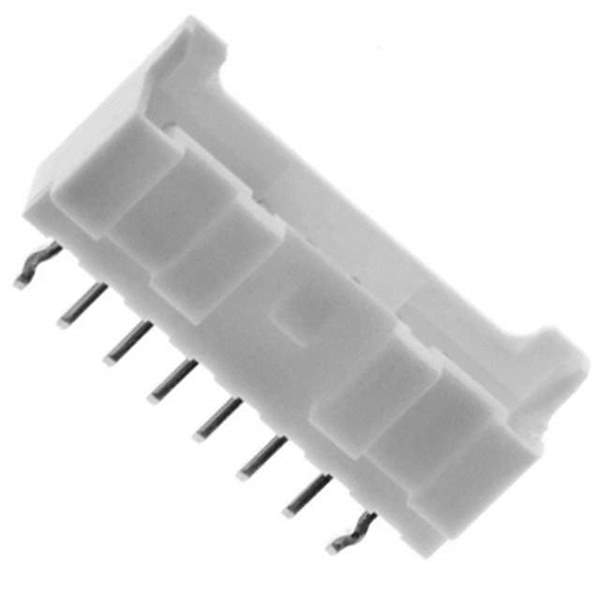

The 1350771-B08B-PASK-1 is a male pin header from JST Sales America Inc.

• Category: Rectangular Connectors - Headers, Male Pins
• Series: PA
• Positions: 8
• Board Guide: Yes
• Connector Type: Header
• Contact Type: Male Pin
• All Positions Loaded: Yes
• Number of Rows: 1
• Termination: Kinked Pin, Solder
• Fastening Type: Locking Ramp
• Package: Bulk
• Contact Material: Copper Alloy
• Voltage Rating: 250V
• Mated Stacking Heights: 9.9mm, 14.7mm, 14.9mm
• Ingress Protection: Not Specified
• Material Flammability Rating: UL94 V-0
• Standard Package: 500
• Insulation Material: Polybutylene Terephthalate (PBT) , Glass Filled
• Style: Board to Cable/Wire
• Pitch - Mating: 0.079" (2.00mm)
• Contact Finish - Mating: Tin-Lead
• Contact Finish - Post: Tin-Lead
• Insulation Color: Natural
• Mounting Type: Through Hole
• Shrouding: Shrouded - 4 Wall
• Row Spacing - Mating: Not Specified
• Contact Length - Post: 0.118" (3.00mm)
• Overall Contact Length: 0.319" (8.10mm)
• Insulation Height: 0.303" (7.70mm)
• Contact Shape: Square
• Operating Temperature Range: -25°C to 85°C
• MSL Level: 1 (Unlimited)
• Current Rating (Amps): 3A
• HTSUS: 8536.69.4040
• Status: Obsolete
• RoHS: Non-Compliant
