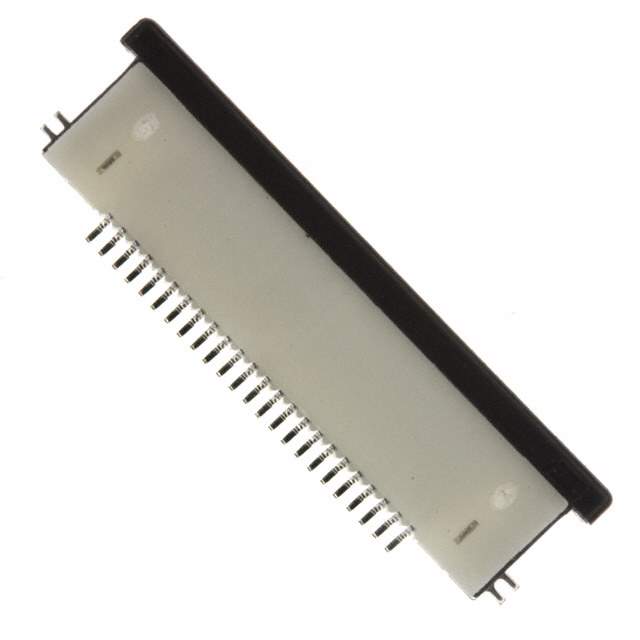

24FLZ-RSM2-TB(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

24FLZ-RSM2-TB(LF)(SN)

Part No 24FLZ-RSM2-TB(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC BOTTOM 24POS 0.5MM R/A / 24 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - FFC, FPC (Flat Flexible) Connectors - FFC, FPC (Flat Flexible) Connector Assemblies
Mfr JST Sales America Inc.
Series FLZ
Package Tape & Reel
Flat Flex Type FFC, FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 24
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.079" (2.00mm)
Locking Feature Slide Lock
Cable End Type Tapered
Contact Material Phosphor Bronze
Contact Finish Tin
Housing Material Polyamide (PA6T) , Nylon 6T
Actuator Material Polyamide (PA6T) , Nylon 6T
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Housing Color Natural
Actuator Color Black
Base Product Number 24FLZ-RS
Standard Package 2,800
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Win Source Part Number 1348824-24FLZ-RSM2-TB(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian 24FLZ-RSM2-TB(LF)(SN) CAD Model

Description

The JST Sales America Inc. FLZ series FFC/FPC connector assembly features 24 positions and a 0.020" pitch.

  • Positions: 24
  • Pitch: 0.020"
  • Features: Zero Insertion Force (ZIF), Solder Retention
  • Voltage Rating: 50V
  • Contact Material: Phosphor Bronze
  • Height Above Board: 0.079" (2.00mm)
  • Housing Material: Polyamide (PA6T), Nylon 6T
  • Flammability Rating: UL94 V-0
  • Housing Color: Natural
  • Operating Temperature: -25°C to 85°C
  • Current Rating: 0.5A
