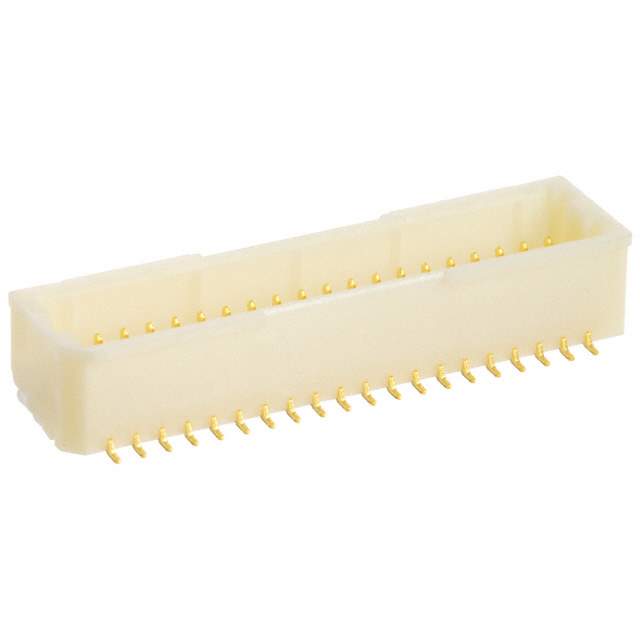

BM40B-SRDS-G-TF(LF)(SN) JST Sales America Inc. BM40B-SRDS-G-TF(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.
BM40B-SRDS-G-TF(LF)(SN) JST Sales America Inc. BM40B-SRDS-G-TF(LF)(SN) Real Image
BM40B-SRDS-G-TF(LF)(SN) JST Sales America Inc. BM40B-SRDS-G-TF(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

BM40B-SRDS-G-TF(LF)(SN)

Part No BM40B-SRDS-G-TF(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SHD 40POS TOP 1MM
Datasheet
BM40B-SRDS-G-TF(LF)(SN) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Series SHD
Packaging Reel - TR
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.039" (1.00mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 40
Number of Positions Loaded All
Number of Rows 2
Mounting SMD
Termination Solder
Fastening Type Push-Pull
Insulation Height 0.167" (4.25mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Material Phosphor Bronze
Insulation Material Polyamide (PA), Nylon, Glass Filled
Features Solder Retention
Operating Temperature Range -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating 1A
Voltage Rating 50V
Mated Stacking Heights 6.3mm
Win Source Part Number 744885-BM40B-SRDS-G-TF(LF)(SN)
Family Name SHD
Introduction Date March 17, 2010
ECCN EAR99
Halogen Free Unknown
Estimated EOL Date 2024
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian BM40B-SRDS-G-TF(LF)(SN) CAD Model

Description

The SHD series 40 position male pin header connector is a high-quality connector that is perfect for use in a wide range of electronic applications.

  • Fastening Type: push-pull
  • Pitch Mating: 1.00mm
  • Material: phosphor bronze
  • Voltage Rating: 50V
  • Mounting: SMD
  • Shrouded: 4 walls
  • Contact Shape: square
  • Current Rating: 1A
  • Temperature Range: -25 to 85 degrees Celsius
  • ECCN: EAR99 rated
