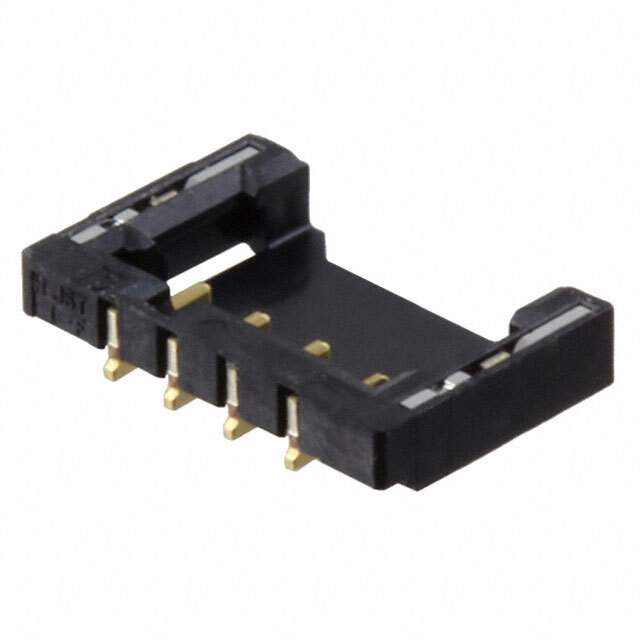

BM04B-ACHFKS-GACN-ETF(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

BM04B-ACHFKS-GACN-ETF(LF)(SN)

Part No BM04B-ACHFKS-GACN-ETF(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 4POS 1.2MM / Connector Header Surface Mount, Right Angle 4 position 0.047" (1.20mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series ACHF
Package Tape & Reel
Connector Type Header
Contact Type Male Blade
Pitch - Mating 0.047" (1.20mm)
Number of Positions 4
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 3 Wall
Mounting Type Surface Mount, Right Angle
Termination Solder
Fastening Type Detent Lock
Insulation Height 0.056" (1.43mm)
Contact Shape Rectangular
Contact Finish - Mating Gold
Contact Material Copper Alloy
Insulation Material Polymer
Features Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 2.5A
Voltage Rating 50V
Base Product Number BM04B-AC
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names BM04BACHFKSGACNETFLFSN,455-2920-2,455-2920-1,455-2920-6
Standard Package 6,000
Win Source Part Number 981875-BM04B-ACHFKS-GACN-ETF(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian BM04B-ACHFKS-GACN-ETF(LF)(SN) CAD Model

Description

The ACHF series rectangular connector header from JST Sales America Inc. is a reliable and versatile component designed for board to cable/wire connections.

  • Positions: 4
  • Termination Feature: Solder Retention
  • Contact Type: Male Blade
  • Contact Material: Copper Alloy
  • Voltage Rating: 50V
  • Shrouded: 3-Wall
  • Insulation Material: Polymer
  • Mounting Type: Surface Mount, Right Angle
  • Pitch-Mating: 0.047" (1.20mm)
  • Contact Finish-Mating: Gold
  • Package: Tape and Reel
  • Standard Package: 6,000
  • Application: Board to Cable/Wire
