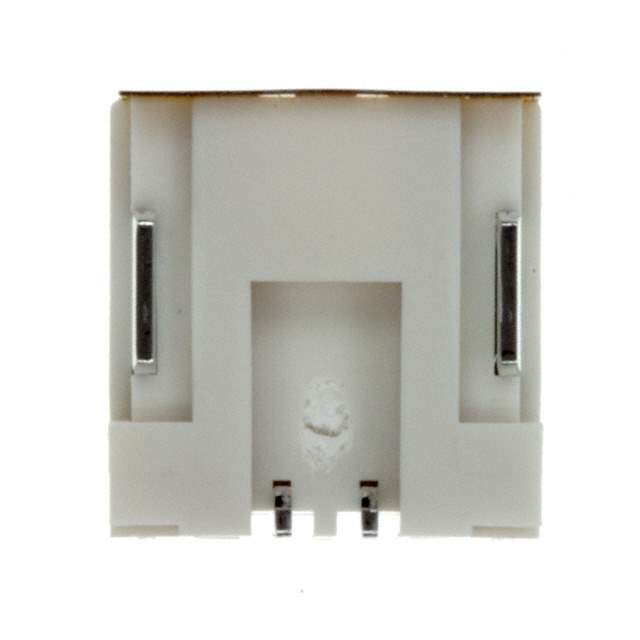

BM02B-ZESS-TBT(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

BM02B-ZESS-TBT(LF)(SN)

Part No BM02B-ZESS-TBT(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD 2POS 1.5MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 33 Weeks
Features Connector Header Surface Mount 2 position 0.059" (1.50mm)
Manufacturer JST Sales America Inc.
Series ZE
Package Reel - TR
Operating Temperature Range -25°C ~ 85°C
Mounting Surface Mount
Family Name BM02B-ZE
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 455-2380-2, 455-2380-1, BM02B-ZESS-TBT (LF)(SN), 455-2380-6, BM02BZESSTBTLFSN
Quantity per package 800
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 864353-BM02B-ZESS-TBT(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian BM02B-ZESS-TBT(LF)(SN) CAD Model

Description

The JST Sales America Inc. 864353-BM02B-ZESS-TBT(LF)(SN) is a 2-position surface mount connector header.

  • Positions: 2
  • Mounting: Surface Mount
  • Pitch-Mating: 0.059" (1.50mm)
  • Series: ZE
  • Features: Shrouded 4-wall locking ramp
  • Insulation Material: Polyamide (PA), Nylon
  • Packaging: Reel
  • Standard Package: 800
  • MSL Level: 1 (unlimited)
  • Operating Temperature Range: -25°C to 85°C
  • HTSUS: 8536.69.4040
  • Other part numbers: 455-2380-2, 455-2380-1, 455-2380-6, and BM02BZESSTBTLFSN
