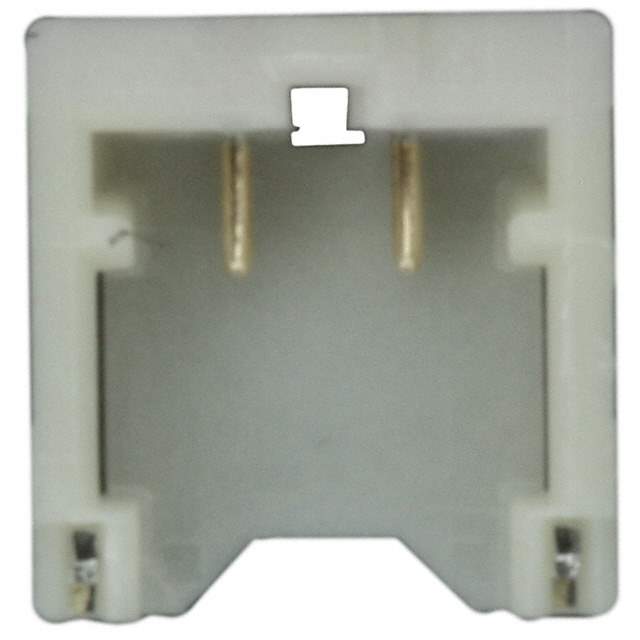

BM02B-ACHSS-GAN-ETF(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

BM02B-ACHSS-GAN-ETF(LF)(SN)

Part No BM02B-ACHSS-GAN-ETF(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Custom Parts (B - D)
Description Conn Shrouded Header HDR 2 POS 1.2mm Solder RA Side Entry SMD T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Contact Plating Gold
Contact Resistance 20 mΩ
Current Rating 2 A
Depth 4.3 mm
Gender Male
Housing Color Beige
Housing Material Resin
Length 4.2 mm
Max Current Rating 2 A
Max Operating Temperature 85 °C
Max Voltage Rating (AC) 50 V
Min Operating Temperature -25 °C
Number of Contacts 2
Number of Rows 1
Orientation Right Angle
Pitch 1.2 mm
RoHS Compliant
Termination Solder
Voltage Rating 50 V
Win Source Part Number 1224405-BM02B-ACHSS-GAN-ETF(LF)(SN)
Categories Custom Parts
Manufacturer JST Sales America Inc.
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian BM02B-ACHSS-GAN-ETF(LF)(SN) CAD Model

Description

The JST Sales America Inc. BM02B-ACHSS-GAN-ETF(LF)(SN) is a male connector with two contacts manufactured.

  • Contacts: 2
  • Pitch: 1.2 mm
  • Termination Type: Solder
  • Voltage Rating: 50V
  • Current Rating: 2A
  • Contact Resistance: 20 mΩ
  • Material: Resin
  • Housing Color: Beige
  • Orientation: Right-Angle
  • Depth: 4.3mm
  • RoHS Compliant: Yes
  • Minimum Operating Temperature: -25 degrees Celsius
  • Maximum Operating Temperature: 85 degrees Celsius
