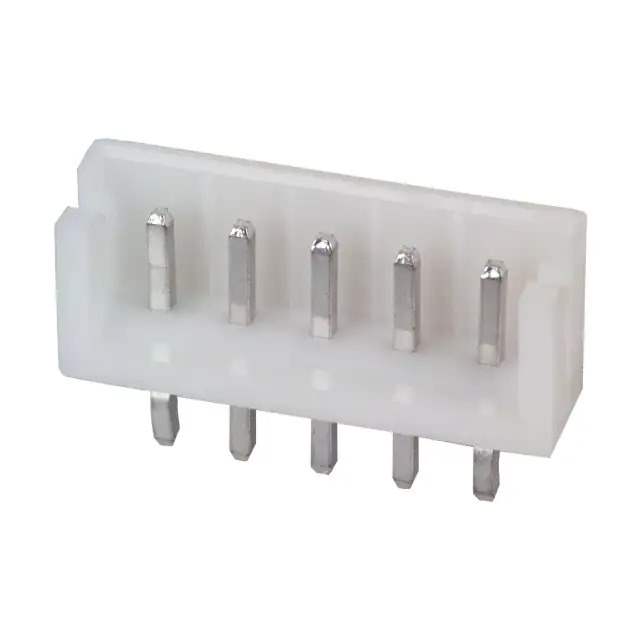

B5B-EH-A(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

B5B-EH-A(LF)(SN)

Part No B5B-EH-A(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 5POS 2.5MM / Connector Header Through Hole 5 position 0.098" (2.50mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series EH
Package Bulk
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Number of Positions 5
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 3 Wall
Mounting Type Through Hole
Termination Press-Fit, Solder
Fastening Type Friction Lock
Contact Length - Mating 0.130" (3.30mm)
Contact Length - Post 0.126" (3.20mm)
Insulation Height 0.236" (6.00mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Voltage Rating 250V
Mated Stacking Heights 8.1mm
Base Product Number B5B-EH-A
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 852548-B5B-EH-A(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian B5B-EH-A(LF)(SN) CAD Model

Description

The 852548-B5B-EH-A(LF)(SN) is a male pin header connector from the EH series.

  • Type: Male Pin Header Connector
  • Series: EH
  • Number of Positions: 5
  • Connection Type: Board to Cable/Wire
  • Termination: Press-Fit and Solder
  • Fastening Type: Friction Lock
  • Voltage Rating: 250V
  • Current Rating: 3A
  • Contact Material: Brass with Tin finish
  • Shrouded: Shrouded with 3 walls
  • Pitch: 0.098" (2.50mm)
  • Standard Package: 1,000 pieces
  • Operating Temperature: -25°C to 85°C
  • MSL Level: 1 (unlimited)
  • HTSUS Code: 8536.69.4040
  • Manufacturer: JST Sales America Inc.
