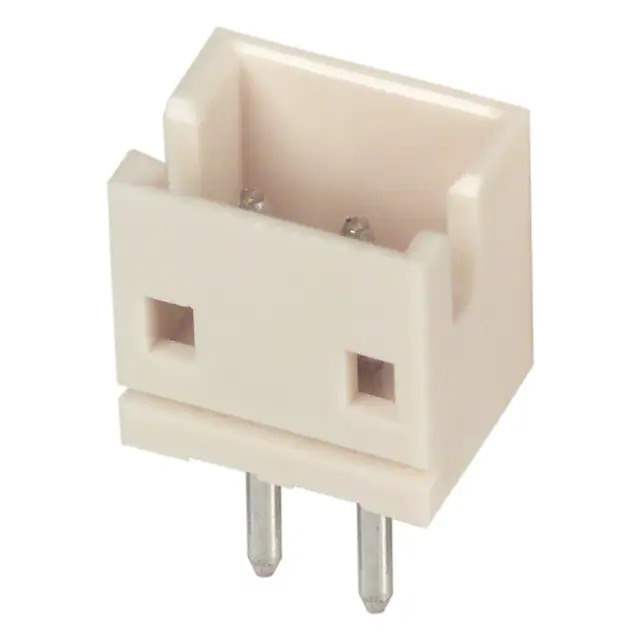

Same model may have multiple batches, images only for reference.

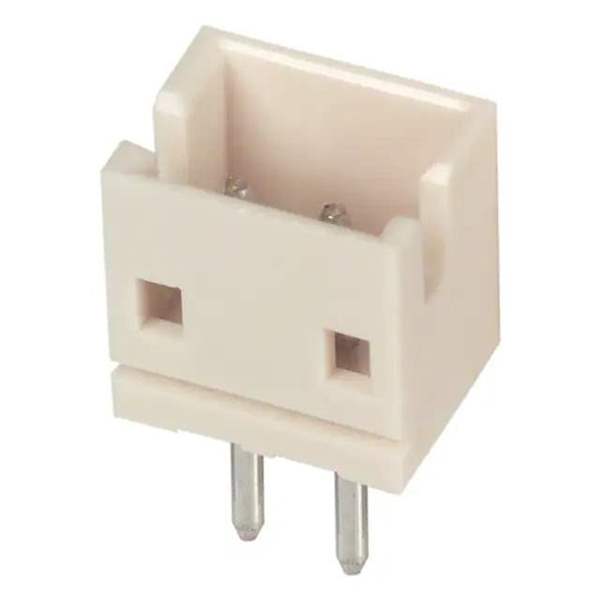

B2B-ZR Real Image
Same model may have multiple batches, images only for reference.

B2B-ZR

Part No B2B-ZR
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 2POS 1.5MM / Connector Header Through Hole 2 position 0.059" (1.50mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series ZH
Package Bulk
Product Status Obsolete
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.059" (1.50mm)
Number of Positions 2
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.094" (2.40mm)
Contact Length - Post 0.106" (2.69mm)
Overall Contact Length 0.256" (6.50mm)
Insulation Height 0.177" (4.50mm)
Contact Shape Circular
Contact Finish - Mating Tin-Lead
Contact Finish - Post Tin-Lead
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6, Glass Filled
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 1A
Voltage Rating 50V
Mated Stacking Heights 5.6mm
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 912408-B2B-ZR
Ultra Librarian 3D Model Ultra Librarian B2B-ZR CAD Model

Description

The 912408-B2B-ZR is a 2-position male pin header connector from JST Sales America Inc. It is part of the ZH series of rectangular connectors and is designed for board to cable/wire applications.

  • Fastening Type: Detent lock
  • Mounting: Through hole
  • Contact Material: Brass
  • Contact Finish (Mating): Tin-lead
  • Contact Finish (Post): Tin-lead
  • Voltage Rating: 50V
  • Current Rating: 1A
  • Insulation Material: Polyamide (PA66), nylon 6/6, and glass filled
  • Flammability Rating: UL94 V-0
  • Contact Shape: Circular
  • Contact Length: 0.256" (6.50mm)
  • Product Status: Obsolete
  • Package Quantity: 2,000 pcs
