B14B-XH-A(LF)(SN) JST Sales America Inc.
Same model may have multiple batches, images only for reference.

B14B-XH-A(LF)(SN)

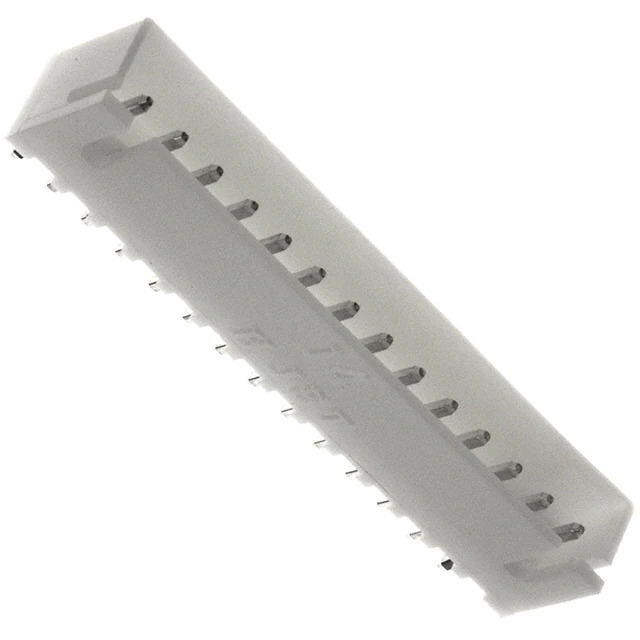

Part No B14B-XH-A(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 14POS 2.5MM / Connector Header Through Hole 14 position 0.098" (2.50mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series XH
Package Bulk
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Number of Positions 14
Number of Rows 1
Row Spacing - Mating -
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Press-Fit, Solder
Fastening Type Detent Lock
Contact Length - Mating -
Contact Length - Post 0.134" (3.40mm)
Overall Contact Length -
Insulation Height 0.276" (7.00mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating -
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6
Features -
Temperature Range - Operating -25°C ~ 85°C
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Voltage Rating 250V
Mated Stacking Heights 9.8mm
Contact Finish Thickness - Post -
Applications -
Base Product Number B14B-XH
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1362562-B14B-XH-A(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian B14B-XH-A(LF)(SN) CAD Model

Description

The JST Sales America Inc. XH series presents the B14B-XH-A(LF)(SN) header connector, a reliable and efficient solution for rectangular connectors manufactured by JST Sales America Inc.

  • Current Rating: 3A
  • Pitch: 0.098" (2.50mm)
  • Application: Board to Cable/Wire
  • Contact Type: Male Pin
  • Mounting Type: Through Hole
  • Contact Finish: Tin
  • Packaging: Bulk
  • Base Product Number: B14B-XH
  • Insulation Material: Polyamide (PA66), Nylon 6/6
  • Design: Shrouded 4-Wall
  • Mated Stacking Heights: 9.8mm
