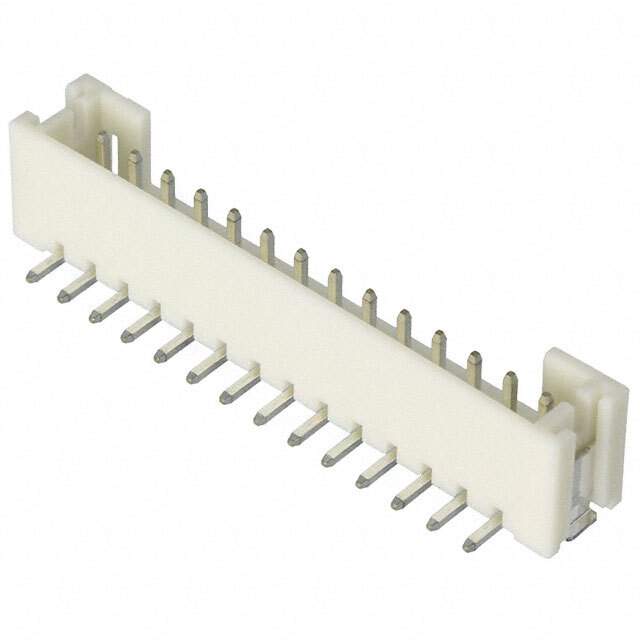

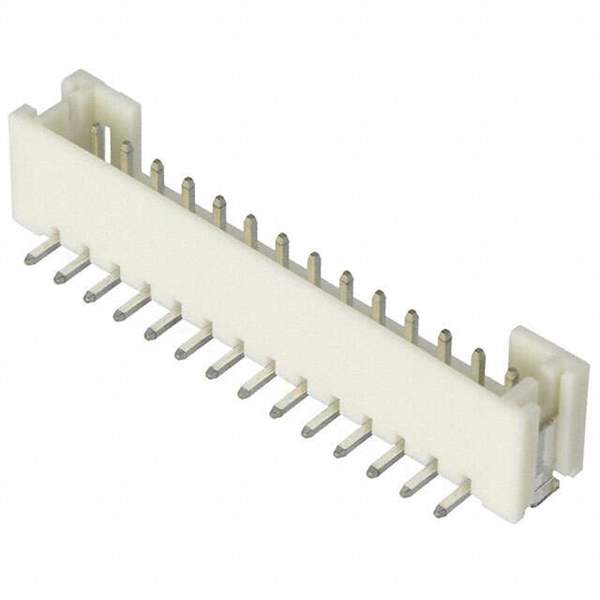

B14B-PH-SM4-TB(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

B14B-PH-SM4-TB(LF)(SN)

Part No B14B-PH-SM4-TB(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD 14POS 2MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer JST Sales America Inc.
Packaging Reel
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 14
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Style SMD
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.130" (3.30mm)
Insulation Height 0.260" (6.60mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA6T), Nylon 6T
Features Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 2A
Voltage Rating 100V
Mated Stacking Heights 8.6mm
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 804589-B14B-PH-SM4-TB(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian B14B-PH-SM4-TB(LF)(SN) CAD Model

Description

The B14B-PH-SM4-TB(LF)(SN) connector from JST Sales America Inc. is a header connector with 14 positions.

  • Mounting Style: Surface Mount
  • Features: Solder Retention
  • Contact Type: Male Pin
  • Shrouding: 4 Walls
  • Insulation Color: Natural
  • Voltage Rating: 100V
  • Current Rating: 2A
  • Mated Stacking Height: 8.6mm
  • Operating Temperature Range: -25°C to 85°C
  • Packaging: Reel
  • Manufacturer Pack Quantity: 1000
  • Style: Board to Cable/Wire
  • Family: Inductors
