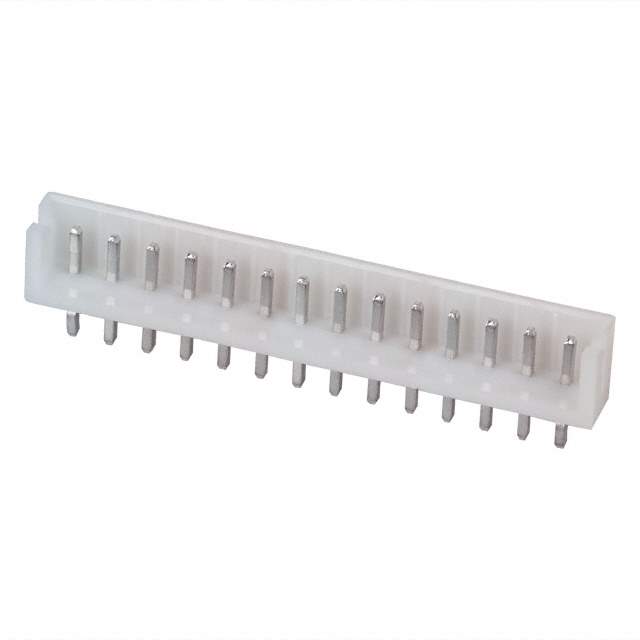

B14B-EH-A(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

B14B-EH-A(LF)(SN)

Part No B14B-EH-A(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 14POS 2.5MM / Connector Header Through Hole 14 position 0.098" (2.50mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series EH
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Number of Positions 14
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 3 Wall
Mounting Type Through Hole
Termination Press-Fit, Solder
Fastening Type Friction Lock
Contact Length - Mating 0.130" (3.30mm)
Contact Length - Post 0.126" (3.20mm)
Insulation Height 0.236" (6.00mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Voltage Rating 250V
Mated Stacking Heights 8.1mm
Base Product Number B14B-EH
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 455-1623,(D)B14B-EH-A(LF)(SN)(P),B14BEHALFSN
Standard Package 250
Win Source Part Number 1171756-B14B-EH-A(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian B14B-EH-A(LF)(SN) CAD Model

Description

The JST Sales America Inc. B14B-EH is a male pin header that falls under the Rectangular Connectors - Headers, Male Pins category. B14B-EH is manufactured by JST Sales America Inc.

  • Package: Bulk
  • Standard Package: 250
  • Series: EH
  • Style: Board to cable/wire
  • Positions: 14
  • Positions Loaded: All
  • Pitch-Mating: 0.098" (2.50mm)
  • Contact Length-Mating: 0.130" (3.30mm)
  • Current Rating: 3A
  • Voltage Rating: 250V
  • Shrouded: 3 Wall
  • Fastening Type: Friction Lock
