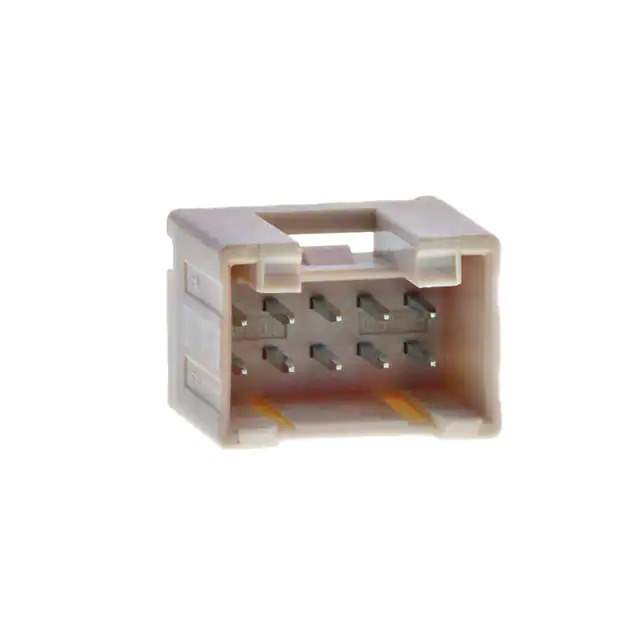

Same model may have multiple batches, images only for reference.

B10B-PUDSS-1(LF)(SN)

Name: B10B-PUDSS-1(LF)(SN)
Brand: JST Sales America Inc.
SKU: 849824
Availability: InStock
Rating: 4.93 (48 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	B10B-PUDSS-1(LF)(SN)
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 10POS 2MM / Connector Header Through Hole 10 position 0.079" (2.00mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	JST Sales America Inc.
Series	PUD
Package	Tray
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	10
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Latch Holder
Contact Length - Post	0.122" (3.10mm)
Insulation Height	0.378" (9.60mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Features	Board Guide
Temperature Range - Operating	-25°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	3A
Voltage Rating	250V
Mated Stacking Heights	11mm
Base Product Number	B10B-PUD
Standard Package	2,750 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	849824-B10B-PUDSS-1(LF)(SN)
Ultra Librarian 3D Model	Ultra Librarian B10B-PUDSS-1(LF)(SN) CAD Model

Alternative Products

Description

The 849824-B10B-PUDSS-1(LF)(SN) is a 10-position rectangular connector header from JST Sales America Inc.

Series: PUD
Contact Gender: Male Pins
Board Guide: Yes
Number of Rows: 2
Positions Loaded: All
Termination: Solder
Fastening: Latch Holder
Voltage Rating: 250V
Contact Material: Copper Alloy
Mated Stacking Height: 11mm
Standard Package: 2,750 pieces
Insulation Material: Polyamide (PA66), Nylon 6/6, Glass Filled
Board-to-Cable/Wire Style: Yes
Mating Pitch: 0.079 inches (2.00mm)
Product Status: Active
