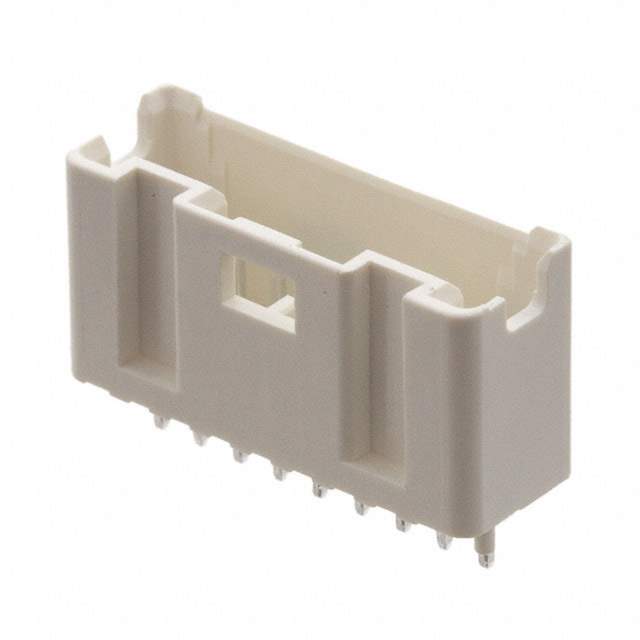

B09B-PNISK-1A (LF)(SN) (F) Real Image1 B09B-PNISK-1A (LF)(SN) (F) Real Image2
Same model may have multiple batches, images only for reference.
B09B-PNISK-1A (LF)(SN) (F) Real Image1 B09B-PNISK-1A (LF)(SN) (F) Real Image2
B09B-PNISK-1A (LF)(SN) (F) Real Image1 B09B-PNISK-1A (LF)(SN) (F) Real Image2
Same model may have multiple batches, images only for reference.

B09B-PNISK-1A (LF)(SN) (F)

Part No B09B-PNISK-1A (LF)(SN) (F)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 9POS 2MM / Connector Header Through Hole 9 position 0.079" (2.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series PNI
Package Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 9
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Press-Fit, Solder
Fastening Type Latch Lock
Contact Length - Post 0.134" (3.40mm)
Insulation Height 0.402" (10.20mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA66), Nylon 6/6, Glass Filled
Features Board Guide
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Voltage Rating 100V
Mated Stacking Heights 12.25mm
Base Product Number B09B-PNI
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names B09BPNISK1ALFSNF,(D)B09B-PNISK-1A(LF)(SN)(F),455-2739
Standard Package 250
Win Source Part Number 1192246-B09B-PNISK-1A (LF)(SN) (F)
Ultra Librarian 3D Model Ultra Librarian B09B-PNISK-1A (LF)(SN) (F) CAD Model

Description

The JST Sales America Inc. B09B-PNI is a rectangular connector header with male pins.

  • Feature: Board Guide
  • Positions: All positions loaded
  • Row: One
  • Termination Methods: Press-Fit / Solder
  • Fastening Type: Latch Lock
  • Package: Tray
  • Contact Material: Copper Alloy
  • Voltage Rating: 100V
  • Mated Stacking Height: 12.25mm
  • Insulation Material: Polyamide (PA66), Nylon 6/6, Glass-Filled
  • Flammability Rating: UL94 V-0
  • Board to Cable/Wire Style: Yes
  • Pitch-Mating: 0.079" (2.00mm)
  • Contact Finish-Mating: Tin
  • Current Rating: 3A
