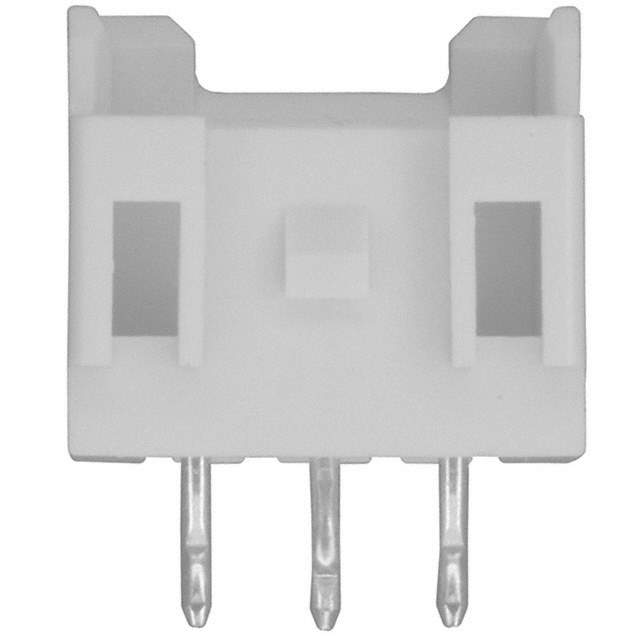

Same model may have multiple batches, images only for reference.

B03B-XASK-1(LF)(SN)

Name: B03B-XASK-1(LF)(SN)
Brand: JST Sales America Inc.
SKU: 975542
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	B03B-XASK-1(LF)(SN)
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 3POS 2.5MM / Connector Header Through Hole 3 position 0.098" (2.50mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	JST Sales America Inc.
Series	XA
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.098" (2.50mm)
Number of Positions	3
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Press-Fit, Solder
Fastening Type	Locking Ramp
Contact Length - Post	0.134" (3.40mm)
Insulation Height	0.346" (8.80mm)
Contact Shape	Circular
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Temperature Range - Operating	-25°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	3A
Voltage Rating	250V
Mated Stacking Heights	11.3mm
Base Product Number	B03B-XAS
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	455-1990,B03BXASK1LFSNP,B03B-XASK-1(LF)(SN)(P)
Standard Package	400
Win Source Part Number	975542-B03B-XASK-1(LF)(SN)
Ultra Librarian 3D Model	Ultra Librarian B03B-XASK-1(LF)(SN) CAD Model

Alternative Products

Description

The 975542-B03B-XASK-1(LF)(SN) is a male pin connector header with 3 positions and a pitch of 0.098 inches (2.50mm).

Series: XA
Operating Temperature Range: -25°C to 85°C
Package: bulk
Mounting: through hole
Fastening Type: locking ramp
Shrouded: 4 walls
Voltage Rating: 250V
Current Rating: 3A
Contact Material: copper alloy
Contact Finish for Mating and Post: tin
Insulation Material: polyamide (PA66), nylon 6/6, glass filled
Insulation Color: natural
Category: Connectors
ECCN: EAR99
MSL Level: 1 (unlimited)
HTSUS code: 8536.69.4040
Pieces per package: 400
Other names: 455-1990, B03BXASK1LFSNP, and B03B-XASK-1(LF)(SN)(P)
