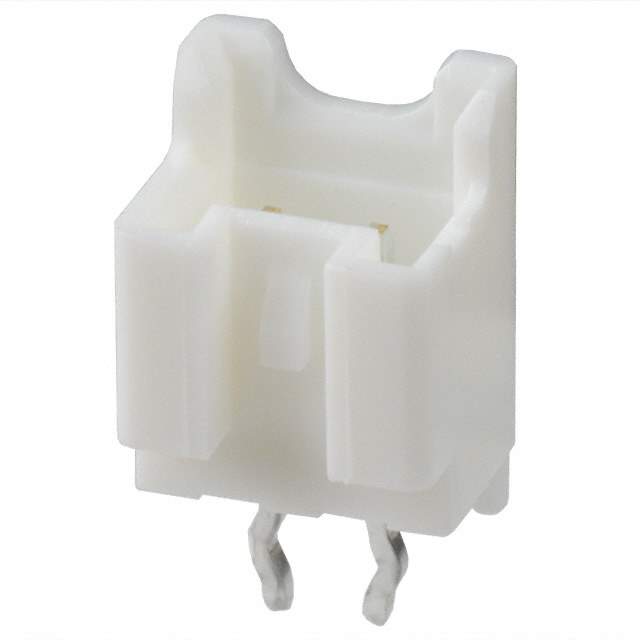

B02B-PASK-1(LF)(SN)

Part No B02B-PASK-1(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Circular Connectors - Housings
Description CONN HEADER VERT 2POS 2MM / Connector Header Through Hole 2 position 0.079" (2.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series PA
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 2
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Kinked Pin, Solder
Fastening Type Locking Ramp
Contact Length - Mating 0.126" (3.20mm)
Contact Length - Post 0.118" (3.00mm)
Overall Contact Length 0.319" (8.10mm)
Insulation Height 0.303" (7.70mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Features Board Guide
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Voltage Rating 250V
Mated Stacking Heights 9.9mm, 14.7mm, 14.9mm
Base Product Number B02B-PAS
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 455-1832,B02BPASK1LFSN
Standard Package 1,000
Win Source Part Number 973153-B02B-PASK-1(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian B02B-PASK-1(LF)(SN) CAD Model

Description

B02B-PASK-1(LF)(SN) from JST Sales America Inc. is a connector housing product used in electronic interconnect systems where reliable mating, compact integration, and serviceable wire-to-board or related connection architectures are important. In practical designs, parts in this category are commonly evaluated for consumer electronics, industrial control assemblies, compact embedded systems, and general-purpose signal connection needs. Engineers typically choose connector housings like this for organized cable management, maintainable assembly workflows, and compatibility with established connector ecosystems. From a sourcing perspective, this part is relevant for both new development and maintenance procurement, especially when teams need continuity with an existing JST design base. The listed lifecycle status is currently unknown, so design and supply-chain teams should verify current production status directly with JST or authorized distribution before committing to long-term programs. RoHS compliance information is not available from the provided input and should also be confirmed through the latest manufacturer datasheet, compliance certificate, or distributor documentation before release to production.
