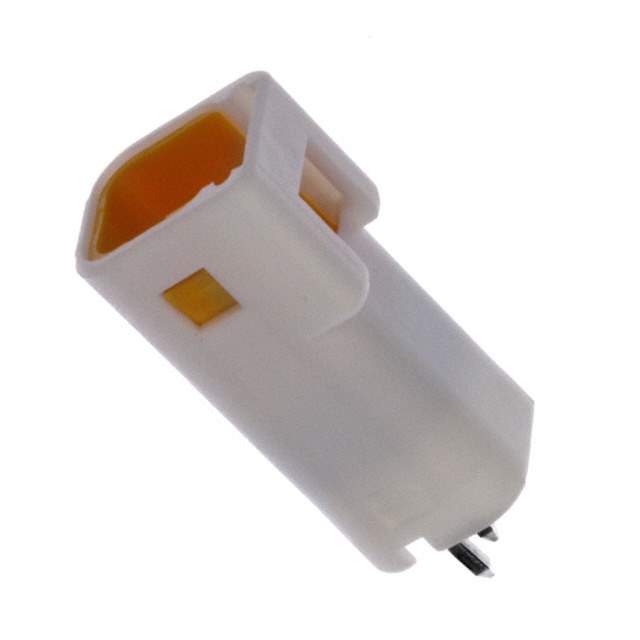

B02B-JWPF-SK-R(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

B02B-JWPF-SK-R(LF)(SN)

Part No B02B-JWPF-SK-R(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 2POS 2MM / Connector Header Through Hole 2 position 0.079" (2.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series JWPF
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 2
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Kinked Pin, Solder
Fastening Type Latch Holder
Contact Length - Post 0.130" (3.30mm)
Insulation Height 0.654" (16.61mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Features Board Guide
Temperature Range - Operating -55°C ~ 85°C
Ingress Protection Dust Tight, Waterproof
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Voltage Rating 100V
Mated Stacking Heights 21mm
Base Product Number B02B-JWP
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 455-1991,B02BJWPFSKRLFSN
Standard Package 825
Win Source Part Number 991404-B02B-JWPF-SK-R(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian B02B-JWPF-SK-R(LF)(SN) CAD Model

Description

The JST Sales America Inc. 991404-B02B-JWPF-SK-R(LF)(SN) is a male pin header connector that has two positions and is loaded with all the necessary components.

  • Positions: Two
  • Features: Board guide
  • Contact Material: Copper alloy
  • Voltage Rating: 100V
  • Ingress Protection: Dust and water
  • Flammability Rating: UL94 V-0
  • Insulation Color: Natural
  • Shrouded: 4 wall
  • Mounting: Through the hole
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
