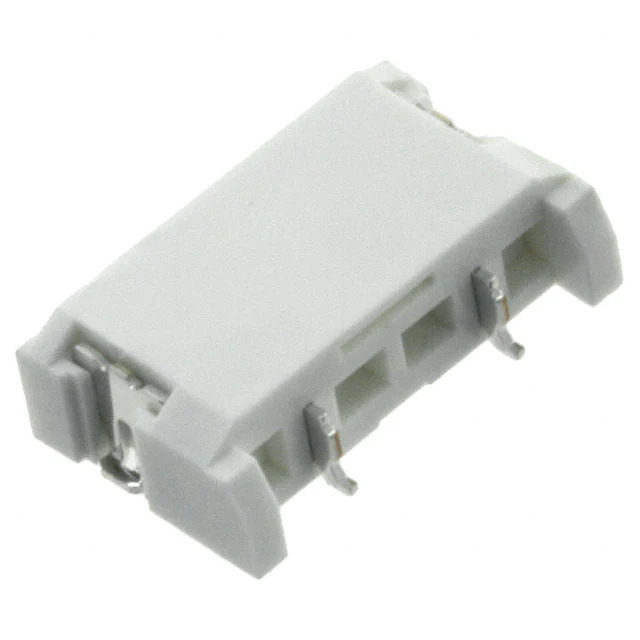

Same model may have multiple batches, images only for reference.

02R-LEBSS-TB(LF)(SN)

Name: 02R-LEBSS-TB(LF)(SN)
Brand: JST Sales America Inc.
SKU: 1364503
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	02R-LEBSS-TB(LF)(SN)
Manufacturer	JST Sales America Inc.
Catalog	Solid State Lighting Connectors
Description	CONN SSL RCPT 2POS 4MM SOLDER / SSL Connector 2 Position Receptacle Board to Board or Cable 0.157" (4.00mm) Solder
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Solid State Lighting Connectors - Solid State Lighting Connector Assemblies
Mfr	JST Sales America Inc.
Series	LEB
Package	Tape & Reel
Product Status	Active
Style	Board to Board or Cable
Connector Type	Receptacle
Number of Positions	2
Mounting Type	Surface Mount, Right Angle
Termination	Solder
Pitch	0.157" (4.00mm)
Fastening Type	-
Features	Solder Retention
Housing Color	White
Wire Gauge	-
Contact Material	Copper Alloy
Contact Finish	Tin
Housing Material	Polyamide (PA9T), Nylon 9T
Temperature Range - Operating	-55°C ~ 105°C
Voltage Rating	300V
Current Rating (Amps)	3A
Ingress Protection	-
Mating Cycles	-
Base Product Number	02R-LEBS
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1364503-02R-LEBSS-TB(LF)(SN)
Ultra Librarian 3D Model	Ultra Librarian 02R-LEBSS-TB(LF)(SN) CAD Model

Alternative Products

Description

The 1364503-02R-LEBSS-TB(LF)(SN) is a solid-state lighting connector assembly manufactured by JST Sales America Inc.

Series: LEB
Packaging: Tape and Reel
Mounting Type: Surface Mount, Right Angle
Current Rating: 3A
Number of Positions: 2
Features: Solder Retention
Operating Temperature: -55°C to 105°C
Contact Finish: Tin
Housing Color: White
Voltage Rating: 300V
Pitch: 0.157" (4.00mm)
Housing Material: Polyamide (PA9T), Nylon 9T
