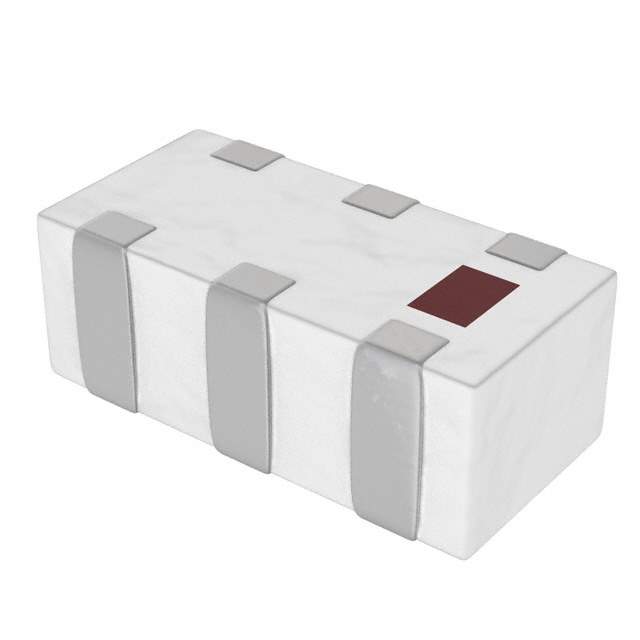

The 2450BM14A0002 is a miniature balanced to unbalanced (Balun) transformer from Johanson Technology. It is specifically designed for impedance matching and signal balancing in applications operating within the 2.4 GHz to 2.5 GHz ISM band, which includes Wi-Fi (IEEE 802.11 b/g/n) and Bluetooth. This component facilitates efficient signal transfer between balanced circuits (such as differential amplifiers or antennas) and unbalanced circuits (like single-ended transceivers).

Applications

• Wi-Fi (IEEE 802.11 b/g/n) devices
• Bluetooth devices
• Zigbee applications
• Wireless LAN (WLAN) systems
• ISM band transceivers

Features

• Surface Mount Device (SMD)
• Compact size
• Balanced to Unbalanced (Balun) functionality
• 2.4 GHz to 2.5 GHz frequency range
• Low insertion loss
• Excellent amplitude and phase balance

Benefits

• Improved signal integrity: The balun provides impedance matching, minimizing signal reflections and losses, resulting in improved signal quality.
• Reduced noise: Balanced signaling reduces common-mode noise, enhancing the signal-to-noise ratio in sensitive receiver circuits.
• Miniaturization: The compact size of the balun allows for smaller and more densely packed circuit designs.
• Simplified circuit design: Integrates impedance matching and signal balancing functions into a single component, reducing component count and simplifying board layout.
• Increased system efficiency: Efficient signal transfer minimizes power loss, contributing to improved overall system efficiency.

Specifications

• Frequency Range: 2400 MHz to 2500 MHz
• Impedance (Balanced): 100 Ohms
• Impedance (Unbalanced): 50 Ohms
• Insertion Loss: 0.7 dB (Typical)
• Amplitude Balance: ±0.5 dB (Typical)
• Phase Balance: ±5 degrees (Typical)
• Return Loss: -20 dB (Typical)
• Power Handling: 200 mW
• Operating Temperature: -40°C to +85°C
• Package: 1206 (3216 Metric)

The 2450BM14A0002 is available in a standard surface mount package, making it compatible with automated assembly processes. Its high performance and small size make it an ideal choice for wireless communication devices requiring efficient and reliable signal conversion between balanced and unbalanced interfaces. It is designed for reflow soldering and is RoHS compliant.
