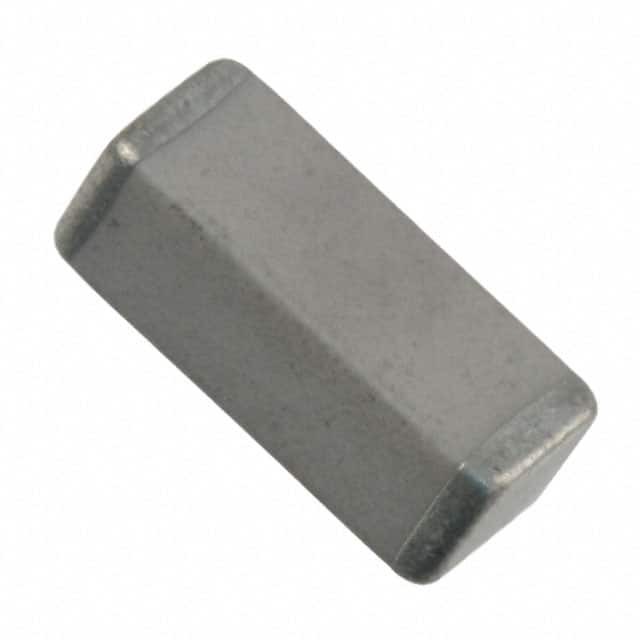

Same model may have multiple batches, images only for reference.
502R29W681KV3E-****-SC Johanson Dielectrics Inc.
Same model may have multiple batches, images only for reference.

502R29W681KV3E-****-SC

Part No 502R29W681KV3E-****-SC
Manufacturer Johanson Dielectrics Inc.
Catalog Ceramic Capacitors
Datasheet
502R29W681KV3E-****-SC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr Johanson Dielectrics Inc.
Series SC
Package Tape & Reel
Capacitance 680 pF
Tolerance ±10%
Voltage - Rated 250V
Temperature Coefficient X7R
Temperature Range - Operating -55°C ~ 125°C
Ratings X1, Y2
Applications Safety
Mounting Type Surface Mount, MLCC
Package / Case 1808 (4520 Metric)
Dimension 0.189" L x 0.080" W (4.80mm x 2.03mm)
Thickness (Max) 0.085" (2.16mm)
Other Names 709-1268-1,502R29W681KV3ESC,709-1268-2,502R29W681KV4E-SC,709-1268-2INACTIVE,502R29W681KV4E-SC,502R29W681KV4E-****-SC,502R29W681KV4E-****-SC,709-1268-1INACTIVE,709-1268-6,709-1268-1,709-1092-6,709-1268-6INACTIVE,709-1268-2,709-1268-6,502R29W681KV3E-SC,709-1092-1,709-1092-2
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Win Source Part Number 1307217-502R29W681KV3E-****-SC
Ultra Librarian 3D Model Ultra Librarian 502R29W681KV3E-****-SC CAD Model

Description

The Johanson Dielectrics Inc. ceramic capacitor is a high-quality electronic component that is used in a variety of applications.

  • Capacitance: 680 pF
  • Voltage Rating: 250V
  • Application: Safety
  • Tolerance: ±10%
  • Series: SC
  • Packaging: Tape and Reel
  • Moisture Resistance: Yes
  • Operating Temperature: -55°C to 125°C
  • Mounting Type: Surface Mount
  • Package: 1808 (4520 Metric)
  • AEC-Q200: Rated
