Same model may have multiple batches, images only for reference.

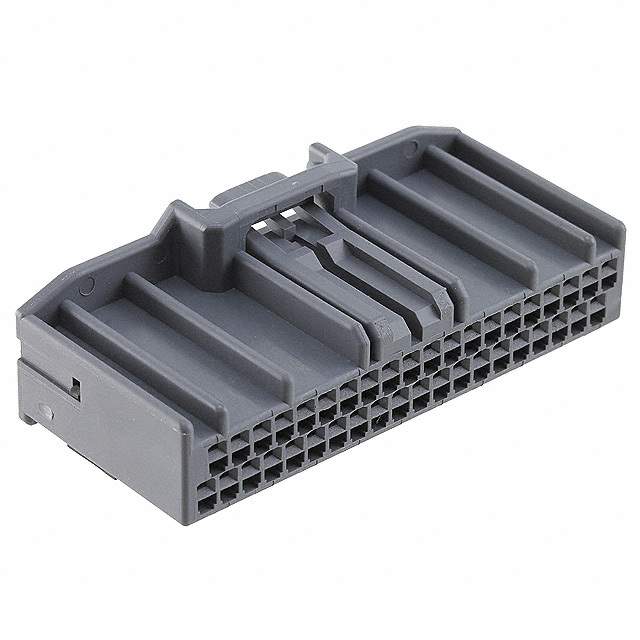

MX34040SF1 Real Image
Same model may have multiple batches, images only for reference.

MX34040SF1

Part No MX34040SF1
Manufacturer JAE Electronics
Catalog Rectangular Connectors
Description CONN SOCKET 40POS HOUSING 2.2MM  /  40 Rectangular Connectors - Housings Receptacle Gray 0.087" (2.20mm)
Datasheet
MX34040SF1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Housings
Mfr JAE Electronics
Series MX34
Package Tray
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 40
Pitch 0.087" (2.20mm)
Number of Rows 2
Row Spacing 0.118" (3.00mm)
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Color Gray
Note Contacts Not Included
Base Product Number MX340
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names -MX34040SF1,670-2299
Standard Package 288
Win Source Part Number 1220470-MX34040SF1
Ultra Librarian 3D Model Ultra Librarian MX34040SF1 CAD Model

Description

The MX34040SF1 is a housing rectangular connector from JAE Electronics.

  • Positions: 40
  • Rows: 2
  • Pitch: 0.087" (2.20mm)
  • Color: Gray
  • Contact Gender: Female socket
  • Contact Termination: Crimp
  • Packaging: Tray
  • Contacts: Not Included
  • Series: MX34
