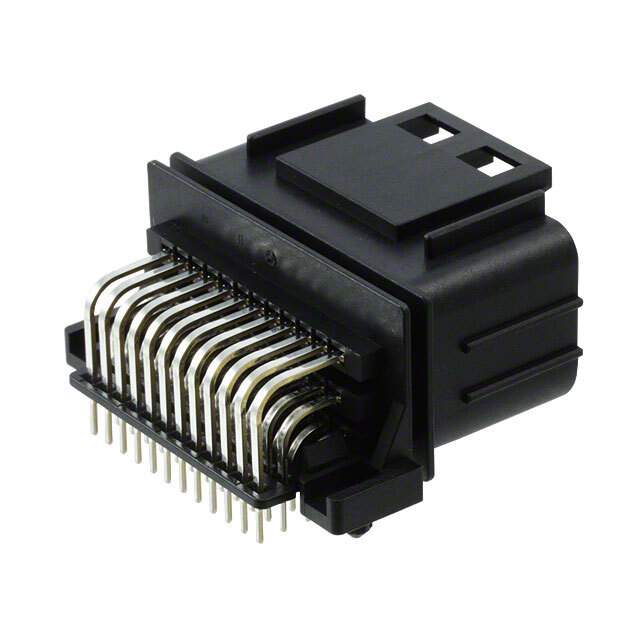

MX23A36NF1 Real Image
Same model may have multiple batches, images only for reference.

MX23A36NF1

Part No MX23A36NF1
Manufacturer JAE Electronics
Catalog Rectangular Connectors
Description CONN HEADER R/A 36POS 2.5MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 13 Weeks
Features Connector Header Through Hole, Right Angle 36 position 0.098" (2.50mm)
Manufacturer JAE Electronics
Series MX23A
Package Tray
Operating Temperature Range -40°C ~ 125°C
Mounting Through Hole, Right Angle
Family Name MX23A36N
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 670-2467, MX23A36NF1-ND
Quantity per package 360
Popularity High
Supply and Demand Status Balance
Win Source Part Number 928539-MX23A36NF1
Ultra Librarian 3D Model Ultra Librarian MX23A36NF1 CAD Model

Description

The JAE Electronics MX23A36NF1 is a connector header through-hole, right angle 36 position 0.098" (2.50mm) that is part of the MX23A series.

  • Temperature Range: -40°C to 125°C
  • Mounting: Through-Hole, Right Angle
  • Family Name: MX23A36N
  • Category: Connectors
  • ECCN: EAR99
  • Supply and Demand Status: Balanced
  • Quantity per Package: 360
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8536.69.4040
