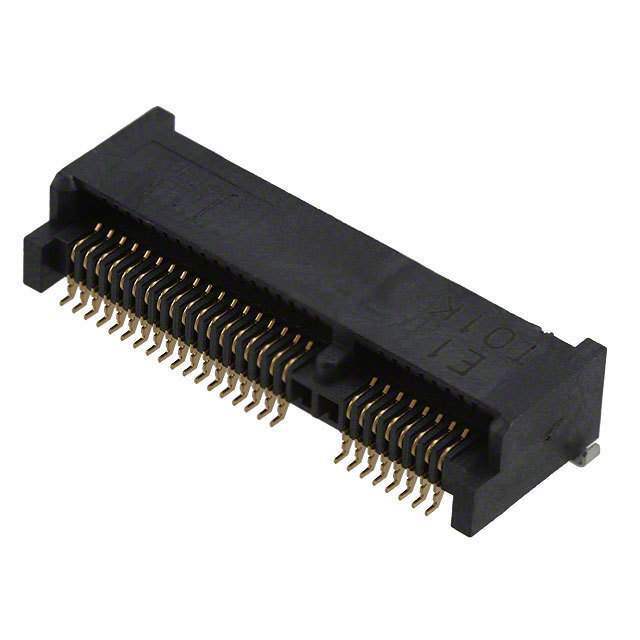

MM60-52B1-E1-R650 JAE Electronics MM60-52B1-E1-R650 Real Image MM60-52B1-E1-R650 label picture
Same model may have multiple batches, images only for reference.
MM60-52B1-E1-R650 JAE Electronics MM60-52B1-E1-R650 Real Image MM60-52B1-E1-R650 label picture
MM60-52B1-E1-R650 JAE Electronics MM60-52B1-E1-R650 Real Image MM60-52B1-E1-R650 label picture
Same model may have multiple batches, images only for reference.

MM60-52B1-E1-R650

Part No MM60-52B1-E1-R650
Manufacturer JAE Electronics
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN PCI EXP MINI FEMALE 52POS / Conn Mini PCI Express Card Edge SKT 52 POS 0.8mm Solder RA SMD T/R
Datasheet
MM60-52B1-E1-R650 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JAE Electronics
Series MM60
Packaging Reel package
Card Type PCI Express Mini Card
Gender Female
Number of Positions 52
Card Thickness 0.039" (1.00mm)
Number of Rows 2
Pitch 0.031" (0.80mm)
Features Board Guide
Mounting Surface Mount, Right Angle
Termination Solder
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 3.9μin (0.10μm)
Operating Temperature Range -40°C ~ 85°C
Material - Insulation Thermoplastic
Read Out Dual
Win Source Part Number 788975-MM60-52B1-E1-R650
Popularity Medium
Supply and Demand Status Limited
Quantity per package 650
Family Name MM60
Introduction Date October 11, 2007
ECCN EAR99
Country of Origin Taiwan
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian MM60-52B1-E1-R650 CAD Model

Description

It has a limited supply and demand status, and the quantity per package is 650.

  • Packaging: Reel
  • Number of Positions: 52
  • Pitch: 0.031" (0.80mm)
  • Operating Temperature: -40°C to 85°C
  • Board Guide: Yes
  • Contact Type: Not Specified
  • Number of Rows: 2
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: 3.9μin (0.10μm)
  • Contact Material: Copper Alloy
  • Material - Insulation: Thermoplastic
  • Gender: Female
  • Mounting Type: Surface Mount, Right Angle
  • Card Type: PCI Express Mini Card
  • Card Thickness: 0.039" (1.00mm)
  • Family Name: MM60
  • Category: Connectors, Interconnects
