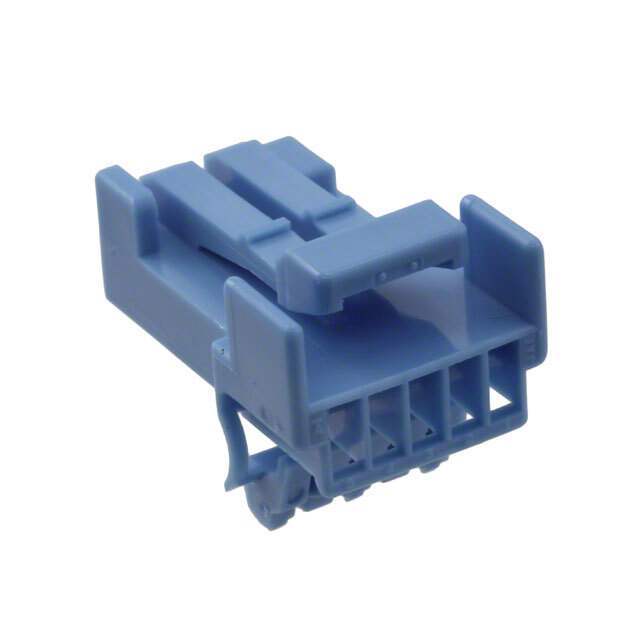

IL-AG5-5SK-S3C1-LB

Part No IL-AG5-5SK-S3C1-LB
Manufacturer JAE Electronics
Catalog Rectangular Connectors
Description CONN RCPT HSG 5POS 2.50MM
Datasheet
IL-AG5-5SK-S3C1-LB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1204053-IL-AG5-5SK-S3C1-LB
Manufacturer JAE Electronics
Category Connectors, Interconnects -Rectangular Connectors- Rectangular Connector Housings
Series IL-AG5
Package Bulk
Product Status Active
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 5
Pitch 0.098" (2.50mm)
Mounting Type Free Hanging (In-Line)
Ultra Librarian 3D Model Ultra Librarian IL-AG5-5SK-S3C1-LB CAD Model

Description

●Designed for automotive instrument panel applications
●Mechanical lock assures positive mating
●Unique housing configuration helps prevent mismating
●Double locking mechanism prevents dislodging
of contacts
