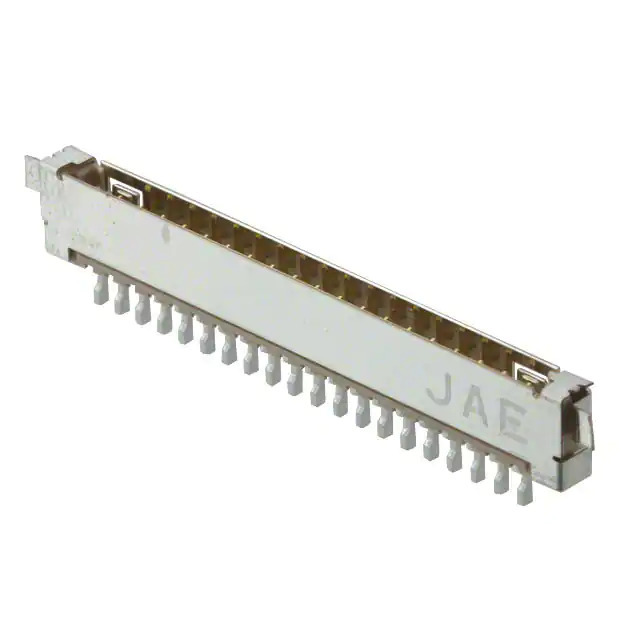

FI-SEB20P-HFE-E3000 JAE Electronics
Same model may have multiple batches, images only for reference.

FI-SEB20P-HFE-E3000

Part No FI-SEB20P-HFE-E3000
Manufacturer JAE Electronics
Catalog Rectangular Connectors
Description CONN HEADER BRD EDGE 20P 1.25MM / Connector Header Board Edge, Cutout; Surface Mount, Right Angle 20 position 0.049" (1.25mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr JAE Electronics
Series FI
Package Tape & Reel
Product Status Active
Connector Type Receptacle
Contact Type Male Pin
Pitch - Mating 0.049" (1.25mm)
Number of Positions 20
Number of Rows 1
Row Spacing - Mating -
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Board Edge, Cutout; Surface Mount, Right Angle
Termination Solder
Fastening Type Friction Lock
Contact Length - Mating -
Contact Length - Post -
Overall Contact Length -
Insulation Height 0.077" (1.95mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating -
Contact Finish - Post Tin or Tin-Alloy
Contact Material Copper Alloy
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Features Shielded, Solder Retention
Temperature Range - Operating -40°C ~ 80°C
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color Beige
Current Rating (Amps) 1A per Contact
Voltage Rating 200V
Mated Stacking Heights -
Contact Finish Thickness - Post -
Applications -
Base Product Number FI-SEB20
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1362698-FI-SEB20P-HFE-E3000
Ultra Librarian 3D Model Ultra Librarian FI-SEB20P-HFE-E3000 CAD Model

Description

The FI-SEB20P-HFE-E3000 is a male pin header connector from JAE Electronics. It is part of the FI series and has 20 positions.

  • Series: FI
  • Number of Positions: 20
  • Shielding: Shielded
  • Solder Retention: Yes
  • Mounting Type: Board Edge, Cutout, Surface Mount, Right Angle
  • Current Rating: 1A per contact
  • Pitch: 0.049" (1.25mm)
  • California Prop 65 Compliant: Yes
  • Contact Material: Copper Alloy
  • Contact Finish: Gold
  • Flammability Rating: UL94 V-0
  • Voltage Rating: 200V
  • Application: Board to Cable/Wire
