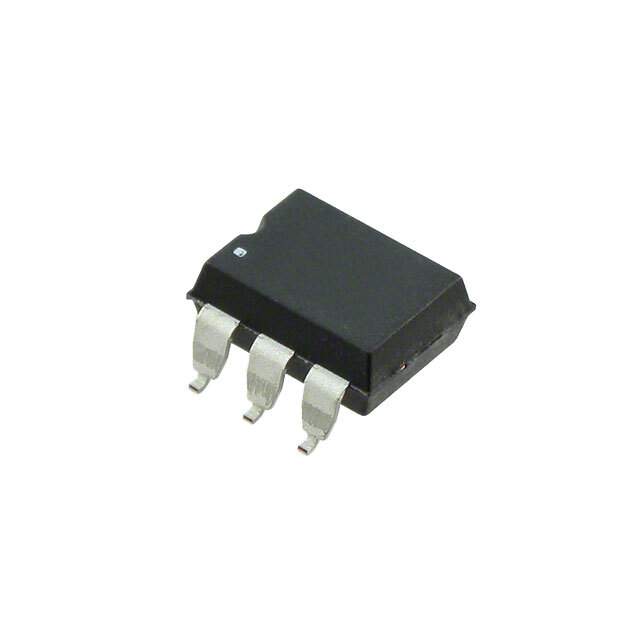

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Relays
Manufacturer IXYS
Packaging Tape and Reel
Mounting Style SMD
Circuit SPST-NO (1 Form A)
Output Type AC, DC
Parts Input Voltage (V) 1.2VDC
Load Voltage (V) 0V ~ 30V
Load Current 2A
On-State Resistance (Maximum) 150 mOhms
Termination Style Gull Wing
Manufacturer Package 6-SMD
Supplier Device Package 6-SMD
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Win Source Part Number 1195680-LCA717STR
Manufacturer Homepage www.clare.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LCA717STR CAD Model

Description

The 1195680-LCA717STR is a solid-state SPST-NO relay designed for use in a wide range of applications.

  • Product Name: 1195680-LCA717STR
  • Relay Type: Solid-state SPST-NO
  • Load Current Rating: 2A
  • Load Voltage: 0V to 30V
  • Package: 6-SMD
  • Installation: Surface mount
  • Packaging: Reel
  • Quantity per Reel: 1,000
  • On-State Resistance: 150 mOhms
  • Status: Limited supply, medium popularity
